RZ03-1A3-D024

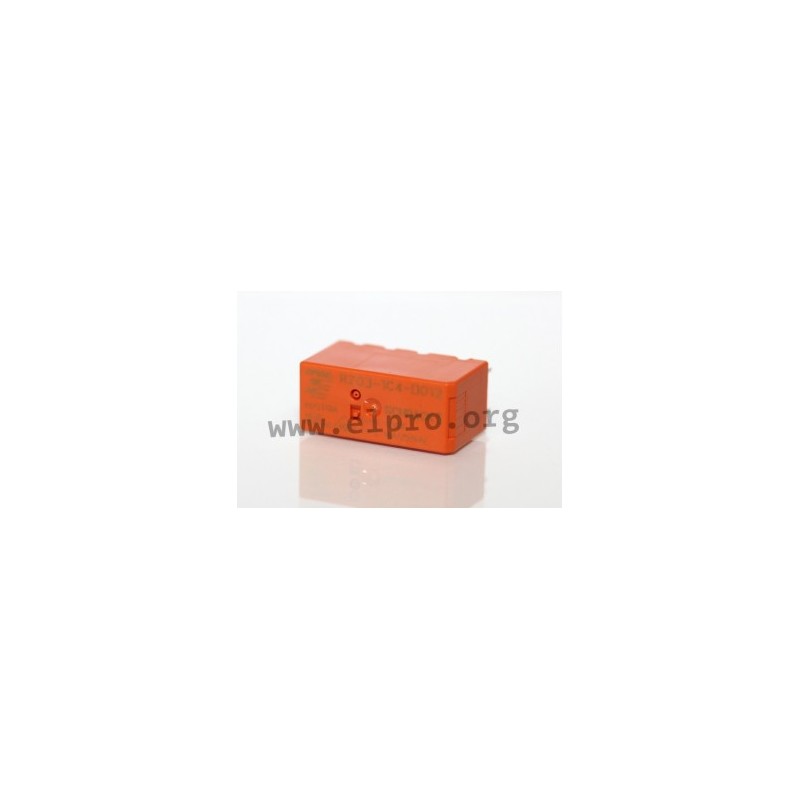

TE Connectivity PCB relay series RZ

  • relays in a compact enclosure (29x12,7x15,7mm)
  • with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_)
  • compliant with protection class RTII (IEC 61810)
  • surge voltage of 5kV AC between coil and contacts
  • contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3)
  • switching current: 12 or 16A

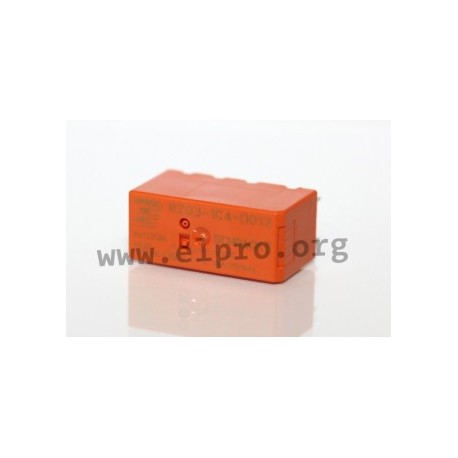

5-1415899-0, TE Connectivity PCB relays, 12 to 16A, 1 changeover or 1 normally open contact, RZ series

RZ03-1A3-D024

113791 RZ03-1A3-D024 5-1415899-0 5-1415899-0 TE Connectivity PCB relay series RZ. relays in a compact enclosure (29x12,7x15,7mm) with a high sensivity coil (400mW) and 1 changeover (RZ-_1C_) or 1 normally open contact (RZ_-1A_) compliant with protection class RTII (IEC 61810) surge voltage of 5kV AC between coil and contacts contact material: AgNi 90/10 (RZ_-_4) resp. AgSnO2 (RZ_-_3) switching current: 12 or 16A

Specifications

manufacturer
Manufacturer's name 5-1415899-0
Coil resistance [Ω] 1440
Response voltage [V] 16,8
Release voltage [V] 2,4
Nominal capacity [mW] 400
Data Sheet

Unit price

1,42 €

Stock: 190
Further delivery:
CW 11/2025

Minimum order quantity 10 units or
multiples of 10.
