RTE24024

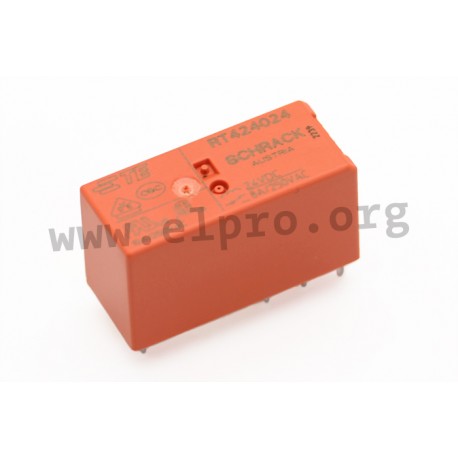

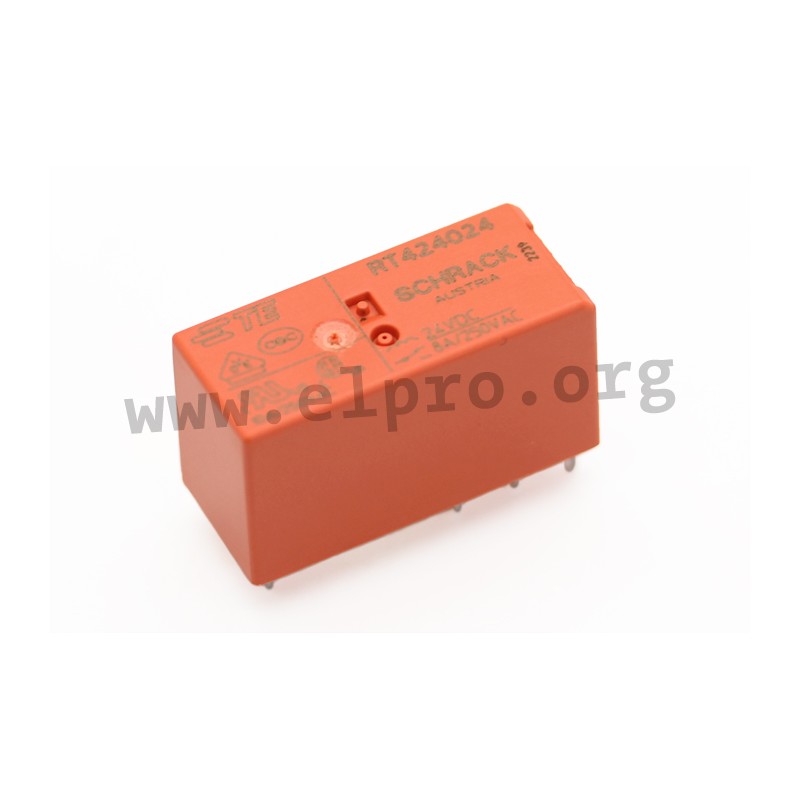

TE Connectivity PCB relay series RT2

  • relays in a flux proof (RT4_) or wash tight design (RTE_)
  • with a high sensivity (400mW) and 2 changeover (DPDT) contacts
  • surge voltage of 5kV AC between coil and contacts
  • compliant with RTII and IEC 60664-1
  • contact material: AgNi 90/10
  • switching current: 8A

RTE24024

113783 RTE24024 1-1393243-0 1-1393243-0 TE Connectivity PCB relay series RT2. relays in a flux proof (RT4_) or wash tight design (RTE_) with a high sensivity (400mW) and 2 changeover (DPDT) contacts surge voltage of 5kV AC between coil and contacts compliant with RTII and IEC 60664-1 contact material: AgNi 90/10 switching current: 8A

Specifications

manufacturer
Manufacturer's name 1-1393243-0
Coil resistance [Ω] 1440
Response voltage [V] 16,8
Release voltage [V] 2,4
Nominal capacity [mW] 400
Data Sheet

Unit price

1,53 €

Stock: 100
Further delivery:
CW 12/2025

Minimum order quantity 20 units or
multiples of 20.
