RT 314 F 24V

rated current: 8-16A

* bistable with 2 coils
* 5kV/10mm coil-contact
* protection class RTII
* insulation to IEC60664-1
* contact
RT 314 F: SPDT
RT 424 F: DPDT
* contact material: AgNi 90/10
* rated current
RT 314 F: 16A
RT 424 F: 8A
* max. switching voltage: 400V AC
* max. switching power
RT 314 F: 4000VA
RT 424 F: 2000VA
* creepage/clearance: 10/10mm
* operate/release time: 10/10ms
* testing voltage
coil/contact: 5000Vrms
opening contact: 1000Vrms
* lifetime mechanical
RT 314 F: >5x106 operations
RT 424 F: >2x106 operations
* lifetime electrical
RT 314 F: 10x103 operations
RT 424 F: 30x103 operations
* operating temperature: -40...+85°C
* weight approx.: 14g

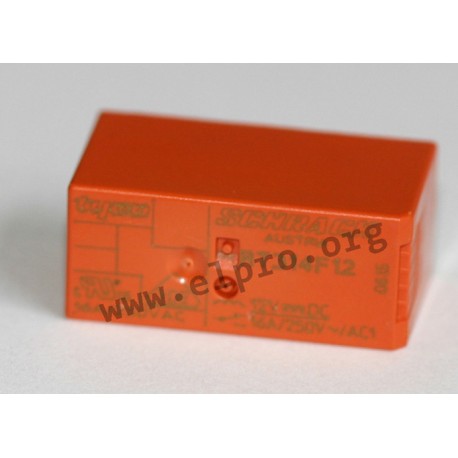

Schrack RT2 series

RT 314 F 24V

12017 RT 314 F 24V 8-1393239-8 8-1393239-8 rated current: 8-16A. * bistable with 2 coils* 5kV/10mm coil-contact* protection class RTII* insulation to IEC60664-1* contactRT 314 F: SPDTRT 424 F: DPDT* contact material: AgNi 90/10* rated current RT 314 F: 16ART 424 F: 8A* max. switching voltage: 400V AC* max. switching powerRT 314 F: 4000VART 424 F: 2000VA* creepage/clearance: 10/10mm* operate/release time: 10/10ms* testing voltagecoil/contact: 5000Vrmsopening contact: 1000Vrms* lifetime mechanicalRT 314 F: >5x106 operationsRT 424 F: >2x106 operations* lifetime electricalRT 314 F: 10x103 operationsRT 424 F: 30x103 operations* operating temperature: -40...+85°C* weight approx.: 14g

Specifications

manufacturer
Manufacturer's name 8-1393239-8
Response voltage [V] 16,8...61,2
Max. switching voltage [V] 250
Max. switching power [VA] 4000
Data Sheet

Unit price

3,09 €

Stock: 1790
Further delivery:
CW 12/2025

Minimum order quantity 5 units or
multiples of 5.
