RT33K024

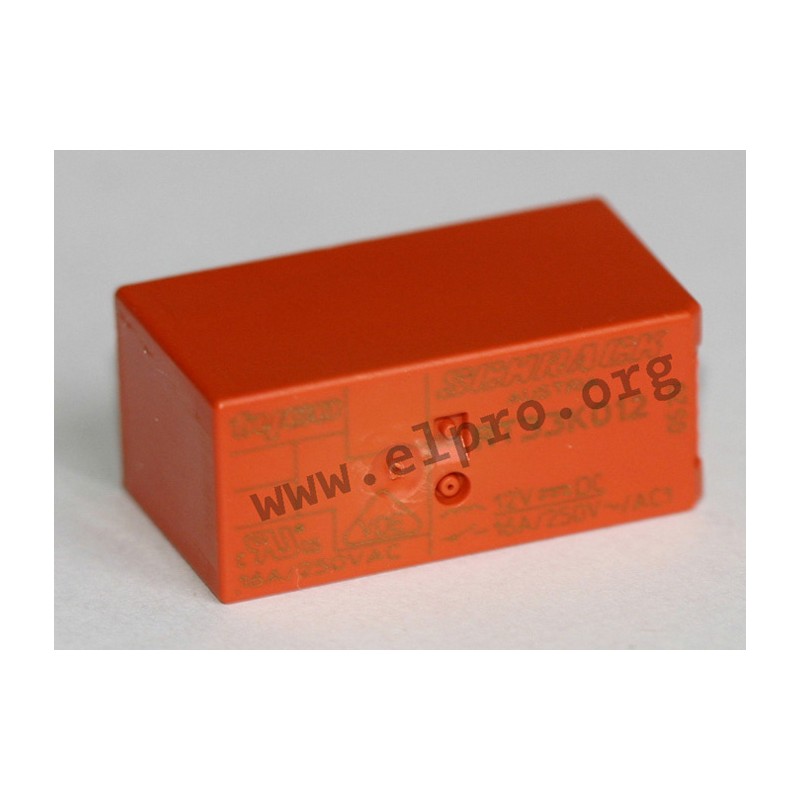

TE Connectivity / Schrack PCB relay series RT

  • rated current: 16A
  • for start-up peak current up to 80A
  • sensitive coil 400mW
  • 5kV/10mm coil-contact
  • protection class RTII
  • insulation class C/250 to IEC 61810
  • contact: SPST-NO
  • contact material: AgSnO2
  • rated current: 16A
  • rated voltage/max. switching voltage: 250/400V AC
  • max. switching power: 4000VA
  • creepage/clearance: 10/10mm
  • operate/release time: 9/6ms
  • testing voltage
  • coil/contact: 5000Vrms
  • opening contact: 1000Vrms
  • mechanical lifetime: 30x106 operations
  • electrical lifetime: 5x104 operations
  • operating temperature: -40 to +85°C
  • weight approximately: 14g

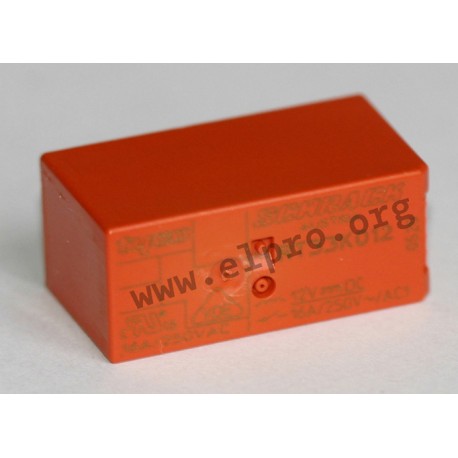

2-1393240-4,TE Connectivity / Schrack PCB relays, 16A (80A) , 1 normally open contact, RT series

RT33K024

113787 RT33K024 2-1393240-4 2-1393240-4 TE Connectivity / Schrack PCB relay series RT. rated current: 16A for start-up peak current up to 80A sensitive coil 400mW 5kV/10mm coil-contact protection class RTII insulation class C/250 to IEC 61810 contact: SPST-NO contact material: AgSnO2 rated current: 16A rated voltage/max. switching voltage: 250/400V AC max. switching power: 4000VA creepage/clearance: 10/10mm operate/release time: 9/6ms testing voltage coil/contact: 5000Vrms opening contact: 1000Vrms mechanical lifetime: 30x106 operations electrical lifetime: 5x104 operations operating temperature: -40 to +85°C weight approximately: 14g

Specifications

manufacturer
Manufacturer's name 2-1393240-4
Switch positions SPST-NO
Data Sheet

Unit price

3,09 €

Stock: 470
Further delivery:
CW 12/2025

Minimum order quantity 10 units or
multiples of 10.
