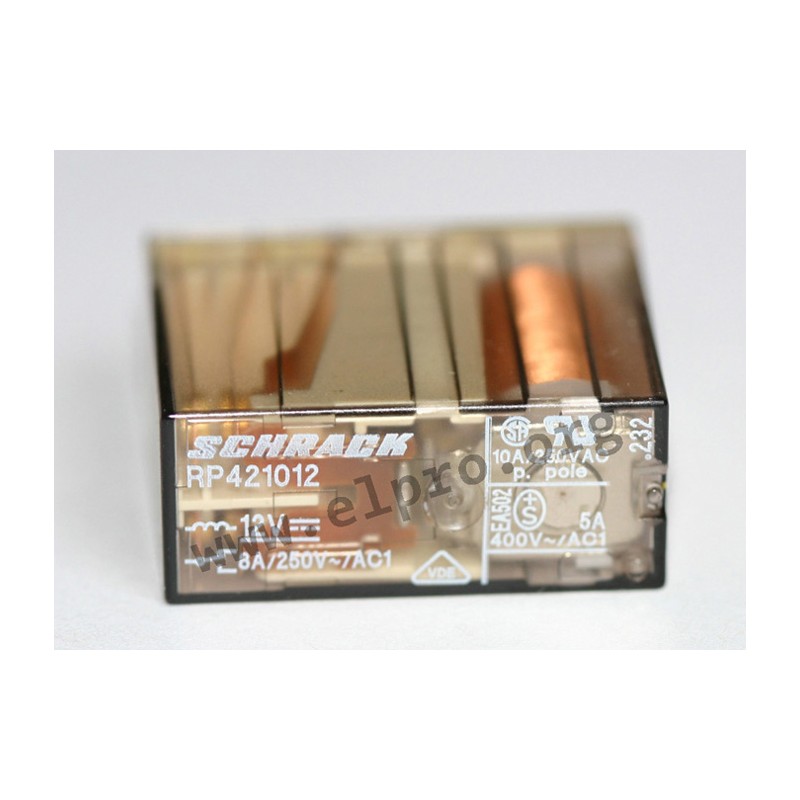

RP 421 12V

rated current: 2x8A

* flux proof
* sensitive coil: 500mW
* insulation to VDE0110b: C/250
* relay protection class RTII
* domestic appliances, UPS's

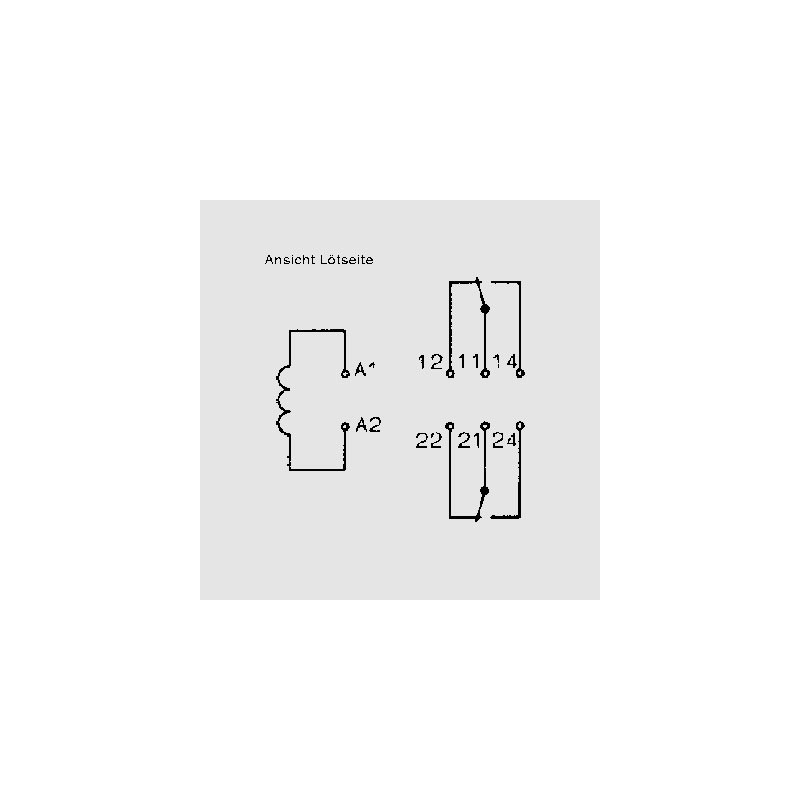

* contact: DPDT (single contact)
* contact material: AgNi 0.15
* rated current: 8A
* max. switching current: 14A
* max. switching voltage: 440V AC
* max. switching power: 2000VA
* creepage/clearance: 8/8mm
* operate/release time: 9/3ms
* testing voltage
coil/contact: 4000Vrms
contact/contact: 2500Vrms
opening contact: 1000Vrms
* lifetime mechanical: 2x106 operations
* operating temperature: -40...+70°C
* weight approx.: 18g
Schrack RP 421 series

RP 421 12V

12010 RP 421 12V 6-1393234-7 6-1393234-7 rated current: 2x8A. * flux proof* sensitive coil: 500mW* insulation to VDE0110b: C/250* relay protection class RTII* domestic appliances, UPS's* contact: DPDT (single contact)* contact material: AgNi 0.15* rated current: 8A* max. switching current: 14A* max. switching voltage: 440V AC* max. switching power: 2000VA* creepage/clearance: 8/8mm* operate/release time: 9/3ms* testing voltage coil/contact: 4000Vrmscontact/contact: 2500Vrmsopening contact: 1000Vrms* lifetime mechanical: 2x106 operations* operating temperature: -40...+70°C* weight approx.: 18g

Specifications

manufacturer
Manufacturer's name 6-1393234-7
Rated current [mA] 44,4
Nominal resistance [Ω] 270
Max. switching voltage [V] 250/440
Max. switching power [VA] 2000
Max. starting current [A] 14
Data Sheet

Unit price

5,59 €

Stock: 401
Further delivery:
CW 22/2025

Minimum order quantity 1 unit or multiples of 20 plus 0 to 1 .
