> Passive elements>Relays>Electromechanical relays>TE Connectivity PCB relays, 6A, 1 normally open contact, Schrack, RE series>RE 0300 24 V

Manufacturers

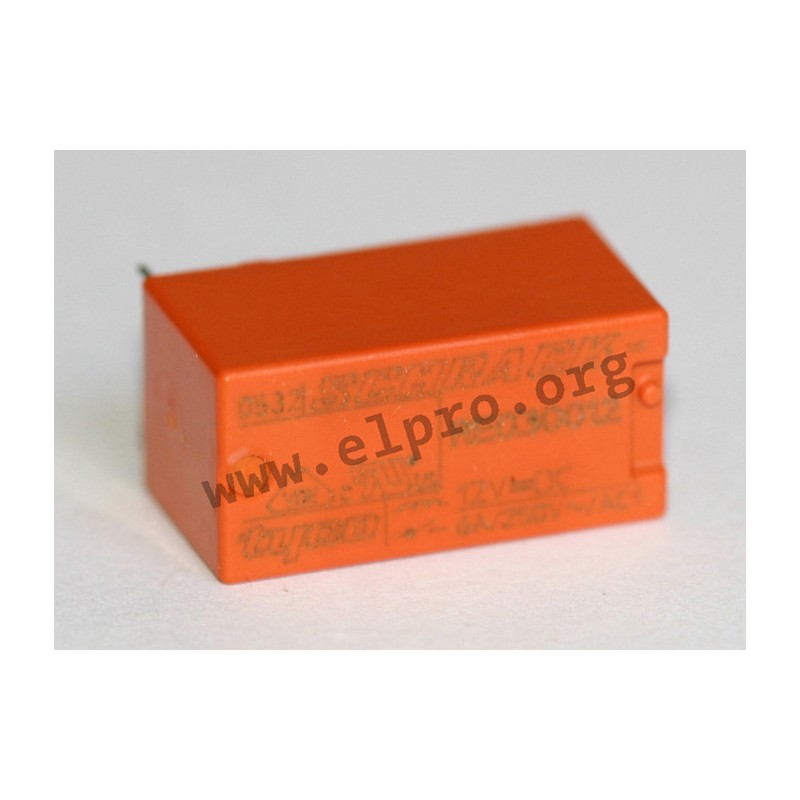

RE 0300 24 V

rated current: 6A

* sensitive coil 200mV
* 4kV coil-contact
* washtight RTIII
* insulation according to IEC 60664-1

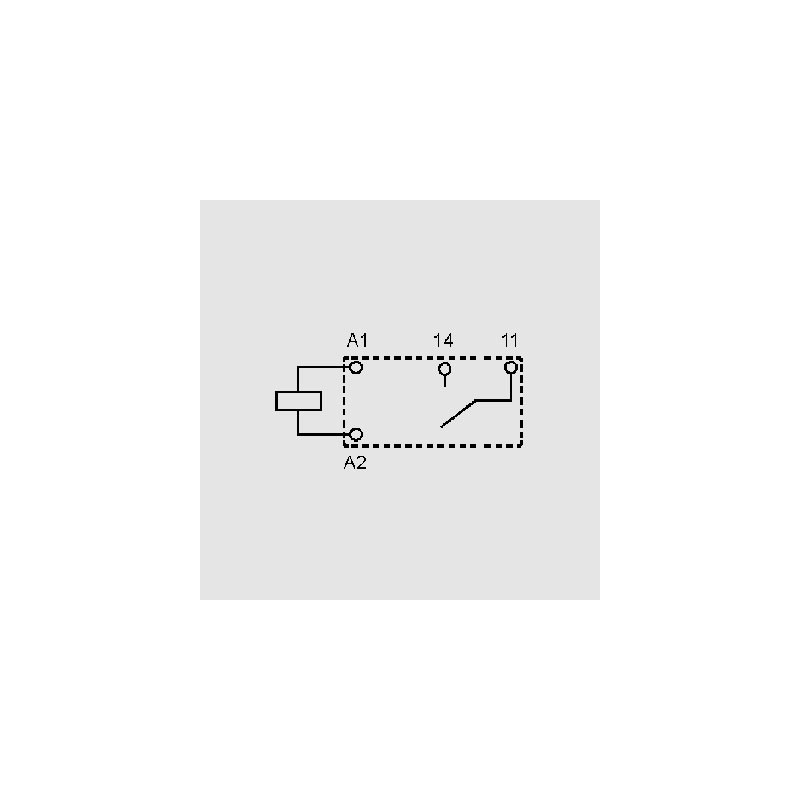

* contact: SPST-NO (single contact)
* contact material: AgCdO
* rated current: 6A
* max. switching current (4s): 15A
* max. switching voltage: 400V AC
* max. switching power: 1500VA
* creepage/clearance: 4/4mm
* operate/release time: 10/5ms
* testing voltage
coil/contact: 4000Vrms
opening contact: 1000Vrms
* lifetime
mechanical: >30x106 operations
electrical (6A, 250V AC): 1x105 perations
* operating temperature: -40...+70°C (+85°C at 4A)
* weight approx.: 5g

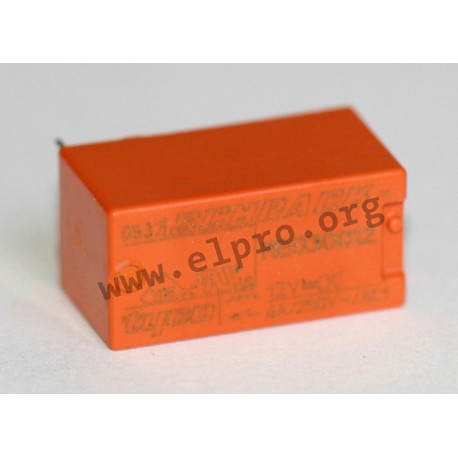

Schrack RE series

RE 0300 24 V

12006 RE 0300 24 V 0-1393217-8 0-1393217-8 rated current: 6A. * sensitive coil 200mV* 4kV coil-contact* washtight RTIII* insulation according to IEC 60664-1* contact: SPST-NO (single contact)* contact material: AgCdO* rated current: 6A* max. switching current (4s): 15A* max. switching voltage: 400V AC* max. switching power: 1500VA* creepage/clearance: 4/4mm* operate/release time: 10/5ms* testing voltage coil/contact: 4000Vrmsopening contact: 1000Vrms* lifetimemechanical: >30x106 operationselectrical (6A, 250V AC): 1x105 perations* operating temperature: -40...+70°C (+85°C at 4A)* weight approx.: 5g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 0-1393217-8
Switching current [A] 6
Data Sheet

Unit price

1,06 €

Stock: 3
