PCN-124D3MHZ 24V
* wash tight construction RTIII

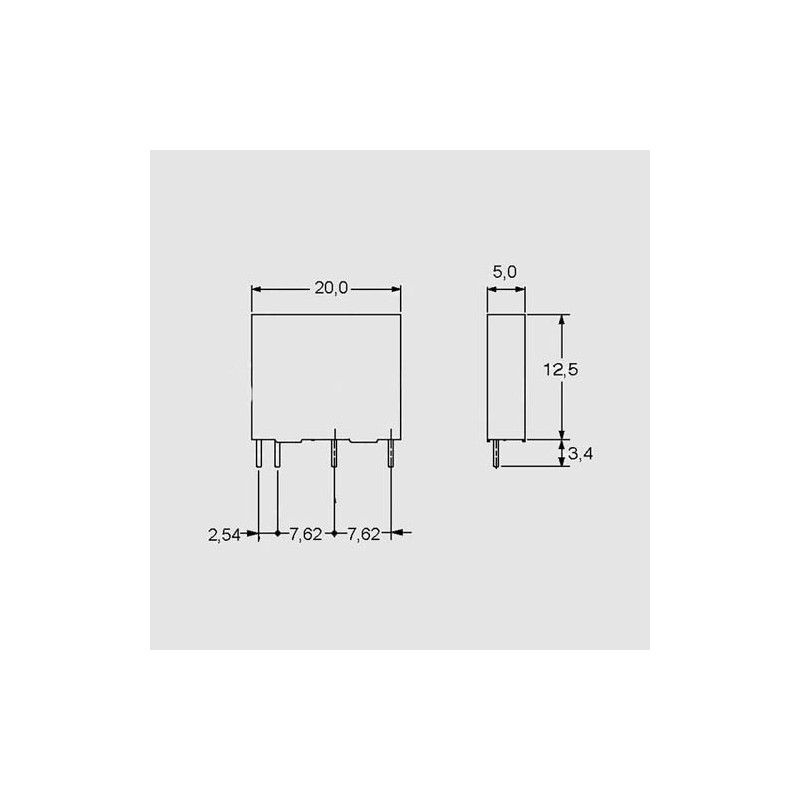

* ultra-slim: 5mm
* cadmium-free contacts
* sensitive coil 120mW
* 3kV coil contact
* insulation class meets EN 60664-1

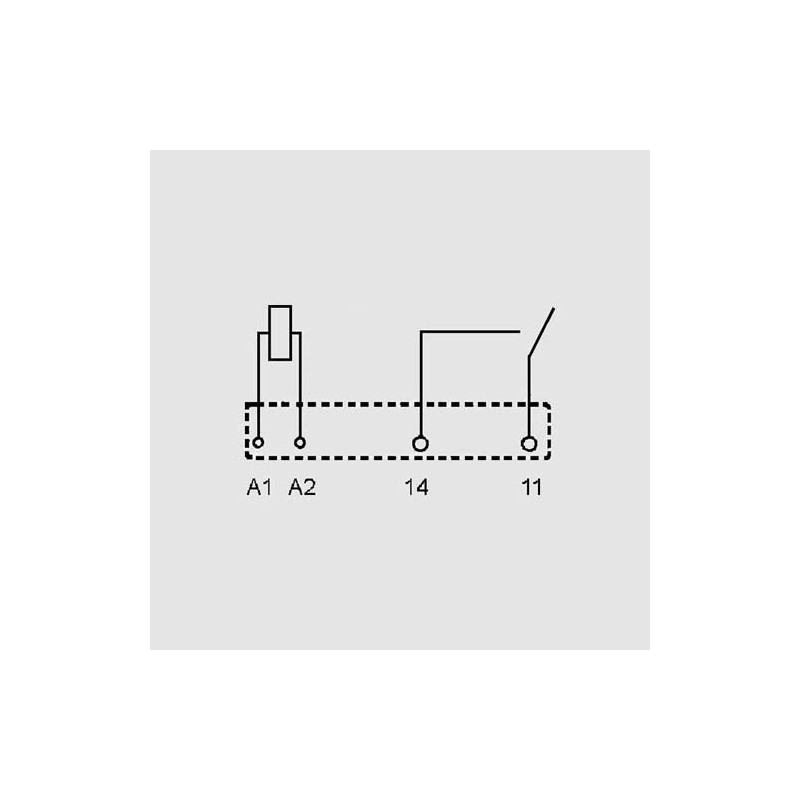

* contact: SPST-NO
* contact material: AgNi
* rated current: 3A
* max. switching current (4s): 5A
* max. switching voltage: 277V AC
* max. switching power (AC): 750VA
* creepage/clearance: 3.5/3.5mm
* operate/release time: 5/2ms
* testing voltage
coil/contact: 3000Vrms
opening contact: 750Vrms
* lifetime
mechanical: 20x106 cycles
electrical (3A/250V AC): 1x105 cycles
* operating temperature: -30...+70°C
* weight approx.: 3g

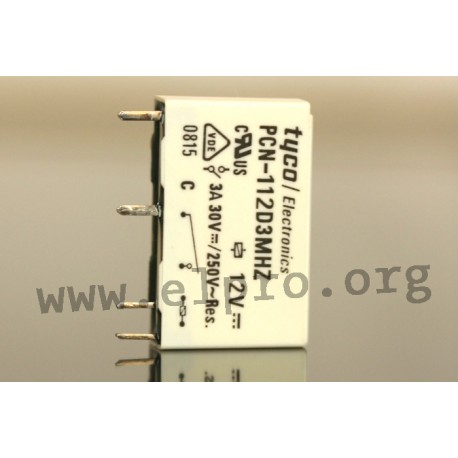

Schrack PCN series

PCN-124D3MHZ 24V

25937 PCN-124D3MHZ 24V 3-1461491-6 3-1461491-6 * wash tight construction RTIII* ultra-slim: 5mm* cadmium-free contacts* sensitive coil 120mW* 3kV coil contact* insulation class meets EN 60664-1* contact: SPST-NO* contact material: AgNi* rated current: 3A* max. switching current (4s): 5A* max. switching voltage: 277V AC* max. switching power (AC): 750VA* creepage/clearance: 3.5/3.5mm* operate/release time: 5/2ms* testing voltagecoil/contact: 3000Vrmsopening contact: 750Vrms* lifetimemechanical: 20x106 cycleselectrical (3A/250V AC): 1x105 cycles* operating temperature: -30...+70°C* weight approx.: 3g

Specifications

manufacturer
Manufacturer's name 3-1461491-6
Rated current [mA] 5
Switching current [A] 3
Nominal resistance [Ω] 4800
Max. switching voltage [V] 277
Max. switching power [VA] 750
Data Sheet

Unit price

1,63 €

Stock: 968
Next incoming goods:
CW 12/2025
500 units

Further delivery:
CW 25/2025

Minimum order quantity 1 to 18 units or multiples of 25 plus 0 to 18 .
