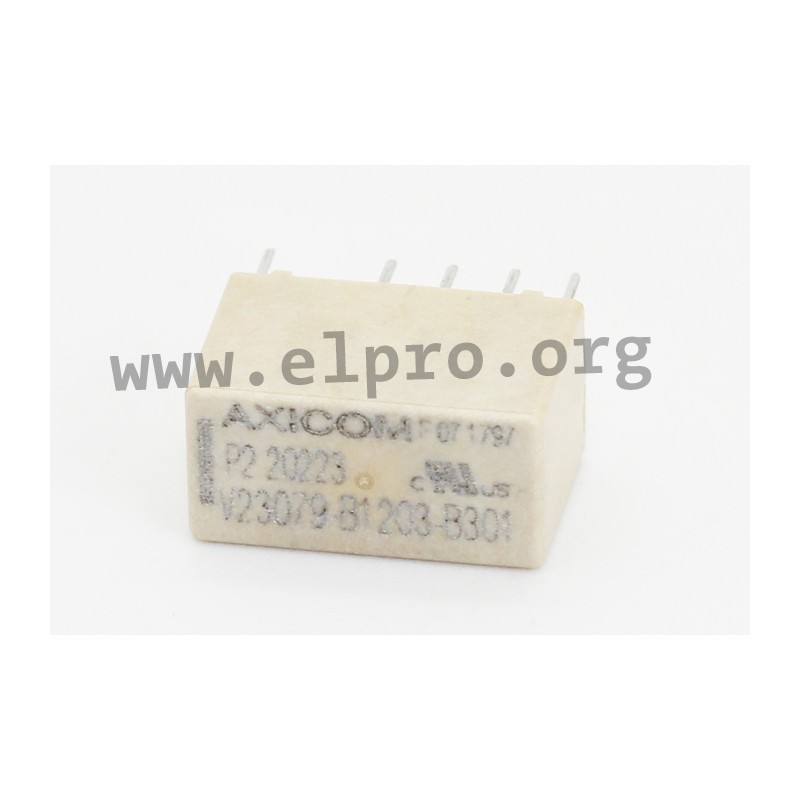

V23079-B1203-B301

TE Connectivity PCB relay series P2 V23079

Bistable standard telecom relays with two coils, the contact form DPDT (2 form C) and the Au plated contact material AgNi. These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW. Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810) and are immersion cleanable. We offer the types V23079-B1201-B301, V23079-B1203-B301 and V23079-B1205-B301 of this series.

  • contact: DPDT
  • contact material: AgNi, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • max switching voltage: 220V DC / 250V AC
  • switching power: 60W / 62,5VA
  • terminal type: PCB-THT
  • testing voltage coil/contact: 1500Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 100x106 operations
  • minimal electrical lifetime 12V /100mA: 5x107 operations
  • minimal electrical lifetime 30V / 2000mA: 2x105 operations
  • minimal operating temperature: -40 to +85°C
  • weight (approximately): 2,8g

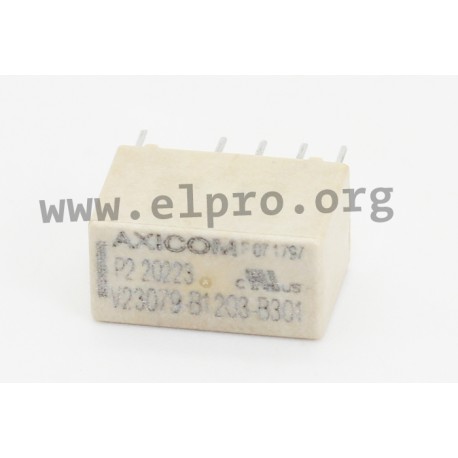

3-1393788-6, TE Connectivity PCB relays, 2A, 2 changeover contacts, bistable, 2 coils, Axicom, P2 V23079 series

V23079-B1203-B301

113583 V23079-B1203-B301 3-1393788-6 3-1393788-6 TE Connectivity PCB relay series P2 V23079. Bistable standard telecom relays with two coils, the contact form DPDT (2 form C) and the Au plated contact material AgNi. These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW. Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810) and are immersion cleanable. We offer the types V23079-B1201-B301, V23079-B1203-B301 and V23079-B1205-B301 of this series. contact: DPDTcontact material: AgNi, Au platedrated current: 2A maximal switching current: 2Amax switching voltage: 220V DC / 250V ACswitching power: 60W / 62,5VAterminal type: PCB-THTtesting voltage coil/contact: 1500Vrmstesting voltage contact/contact: 1000Vrmstesting voltage open contacts: 1000Vrmsminimal mechanical lifetime: 100x106 operationsminimal electrical lifetime 12V /100mA: 5x107 operationsminimal electrical lifetime 30V / 2000mA: 2x105 operationsminimal operating temperature: -40 to +85°Cweight (approximately): 2,8g

Specifications

manufacturer
Manufacturer's name 3-1393788-6
Coil resistance [Ω] 1029
Nominal voltage [V] 12
Switching current [A] 2
Response voltage [V] 9
Release voltage [V] 9
Nominal capacity [mW] 140
Data Sheet

Unit price

1,73 €

Stock: 369
Further delivery:
CW 21/2025

Minimum order quantity 1 to 19 units or multiples of 25 plus 0 to 19 .
