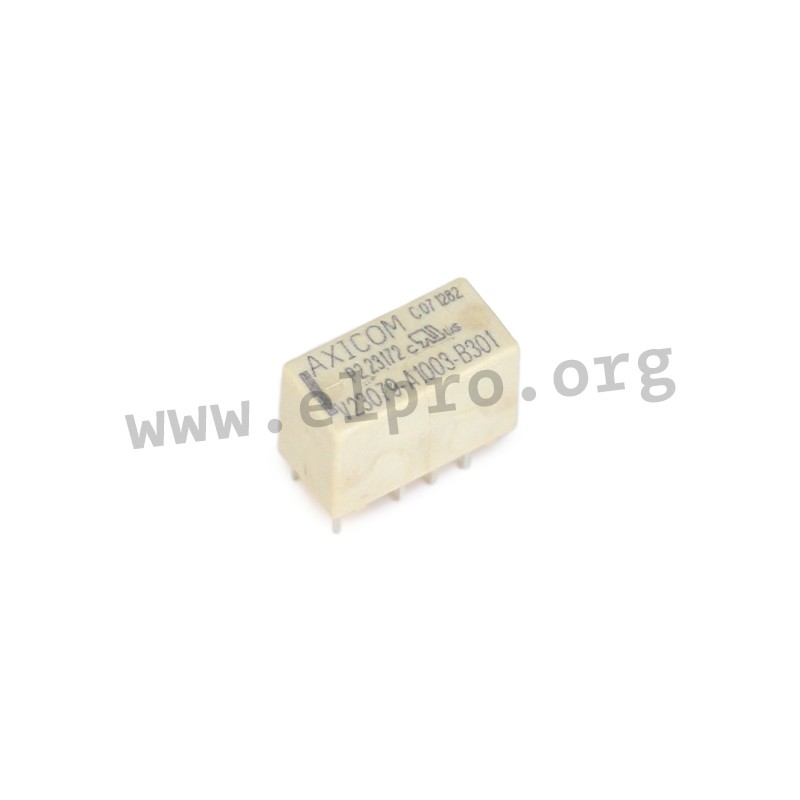

V23079-A1003-B301

TE Connectivity PCB relay series P2 V23079

Standard telecom relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW or 200mW (overmolded types). Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810). We offer the types V23079-A1001-B301, V23079-A1003-B301, V23079-A1005-B301, V23079-A2001-B301, V23079-A2002-B301 and V23079-A2003-B301 of this series.

  • contact: DPDT
  • contact material: AgNi, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • max switching voltage: 220V DC / 250V AC
  • switching power: 60W / 62,5VA
  • testing voltage coil/contact: 1500Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 100x106 operations
  • minimal electrical lifetime 12V /100mA: 5x107 operations
  • minimal electrical lifetime 30V / 2000mA: 2x105 operations
  • minimal operating temperature: -40 to +85°C
  • weight (approximately): 2,8g
1-1393788-1, TE Connectivity PCB relays, 2A, 2 changeover contacts, Axicom, P2 V23079 Series

V23079-A1003-B301

113578 V23079-A1003-B301 1-1393788-1 1-1393788-1 TE Connectivity PCB relay series P2 V23079. Standard telecom relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a maximal switching current of 2A and a high sensitivity for a low power consumption of 140mW or 200mW (overmolded types). Furthermore, they are in compliance with the relay protection class RTIII (IEC 61810). We offer the types V23079-A1001-B301, V23079-A1003-B301, V23079-A1005-B301, V23079-A2001-B301, V23079-A2002-B301 and V23079-A2003-B301 of this series. contact: DPDT contact material: AgNi, Au plated rated current: 2A  maximal switching current: 2A max switching voltage: 220V DC / 250V AC switching power: 60W / 62,5VA testing voltage coil/contact: 1500Vrms testing voltage contact/contact: 1000Vrms testing voltage open contacts: 1000Vrms minimal mechanical lifetime: 100x106 operations minimal electrical lifetime 12V /100mA: 5x107 operations minimal electrical lifetime 30V / 2000mA: 2x105 operations minimal operating temperature: -40 to +85°C weight (approximately): 2,8g

Specifications

manufacturer
Manufacturer's name 1-1393788-1
Coil resistance [Ω] 1029
Nominal voltage [V] 12
Switching current [A] 2
Response voltage [V] 9
Release voltage [V] 1,2
Nominal capacity [mW] 140
Data Sheet

Unit price

1,22 €

Stock: 225
Next incoming goods:
CW 02/2025
500 units

Further delivery:
CW 20/2025

Minimum order quantity 25 units or
multiples of 25.
