1-215083-6

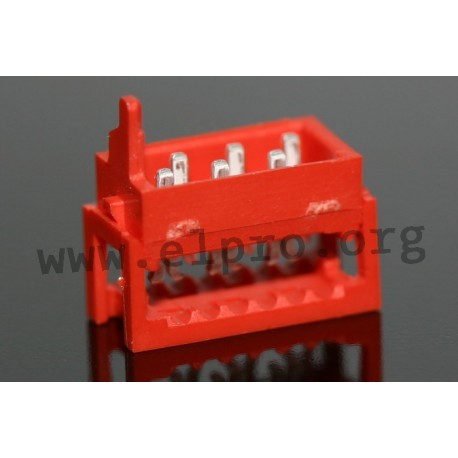

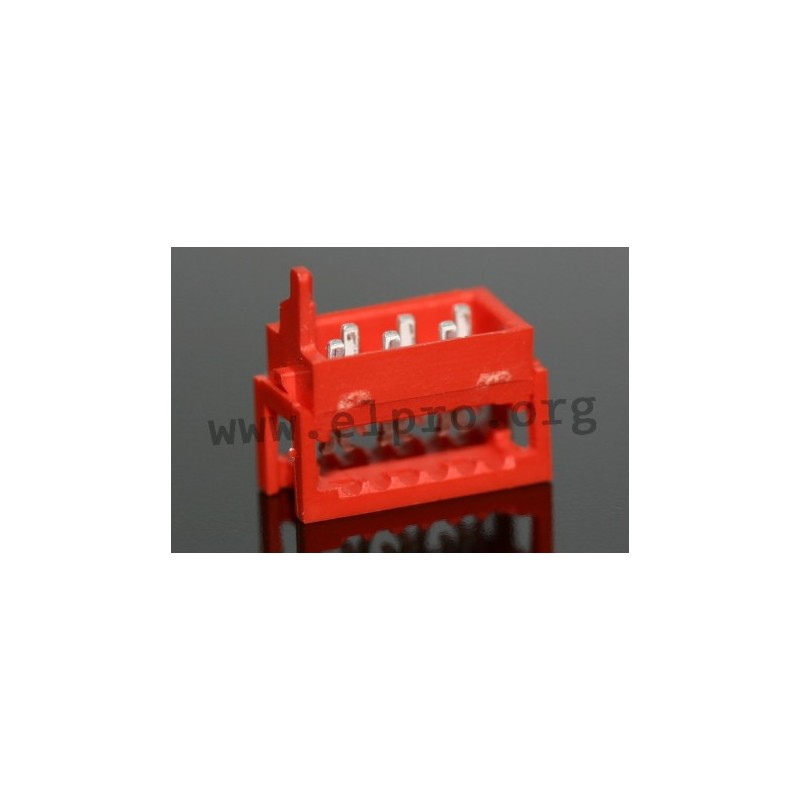

Male PCB connectors

• series Micro-MaTch by TE Connectivitiy
• pitch: 1.27mm
• housing material: thermoplastic, polyester
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• contact resistance: 10mΩ
• insulation resistance: 1000MΩ
• rated voltage: 230V
• rated current: 1.5A
• operating temperature range: -40 to +105°C

suitable female headers for soldering or SMD version

215083 series

1-215083-6

11555 1-215083-6 1-215083-6 Male PCB connectors. • series Micro-MaTch by TE Connectivitiy• pitch: 1.27mm• housing material: thermoplastic, polyester• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tinned• contact resistance: 10mΩ• insulation resistance: 1000MΩ• rated voltage: 230V• rated current: 1.5A• operating temperature range: -40 to +105°Csuitable female headers for soldering or SMD version

Specifications

manufacturer
Manufacturer's name 1-215083-6
Number of poles 16
A [mm] 23,8
Width [mm] 20,7
C [mm] 19,05

Unit price

0,615 €

Stock: 1526
Further delivery:
CW 20/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
