IM02GR

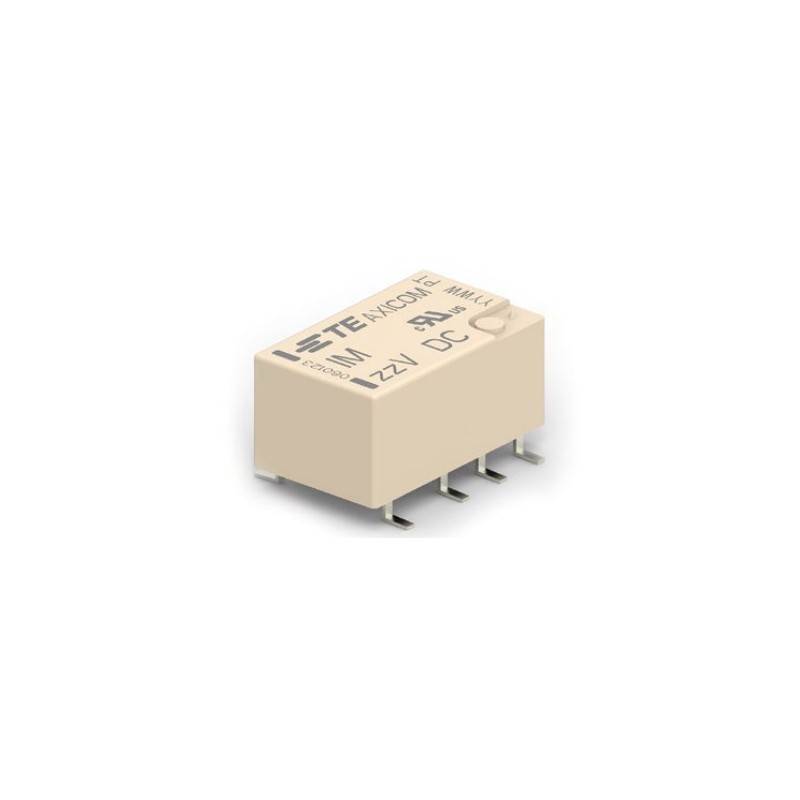

TE Connectivity Axicom SMD relay series IM

Signal relays with the contact form DPDT (2 form C) and the contact material palladium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 220V DC or 250V AC. They are in compliance with the relay protection class RT V (IEC 61180), have a low coil power consumption of 140mW and a high mechanical shock resistance. We offer the types IM01GR, IM02GR, IM03GR, IM06GR and IM07GR.

  • contact: DPDT
  • contact material: PdRu, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • maximal switching voltage: 220V DC / 250V AC
  • terminal type: SMT/SMD
  • switching power: 60W / 62,5VA
  • testing voltage coil/contact: 1800Vrms
  • testing voltage contact/contact: 1000Vrms
  • open contacts: 1000Vrms
  • minimal mechanical lifetime: 108 operations
  • minimal electrical lifetime: 30V DC/2A, 60W: 1x105 operations
  • minimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight (approximately): 0,75g

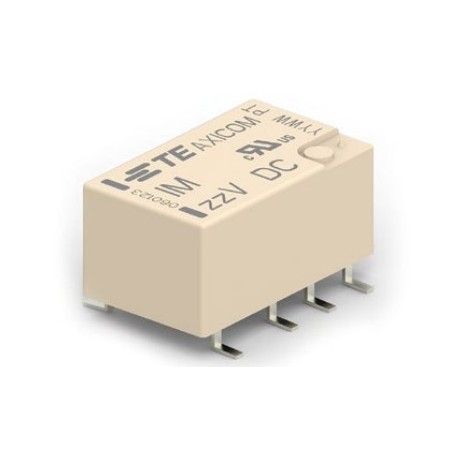

TE Connectivity Axicom IM series

IM02GR

113562 IM02GR 1462037-9 1462037-9 TE Connectivity Axicom SMD relay series IM. Signal relays with the contact form DPDT (2 form C) and the contact material palladium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 220V DC or 250V AC. They are in compliance with the relay protection class RT V (IEC 61180), have a low coil power consumption of 140mW and a high mechanical shock resistance. We offer the types IM01GR, IM02GR, IM03GR, IM06GR and IM07GR. contact: DPDTcontact material: PdRu, Au platedrated current: 2Amaximal switching current: 2Amaximal switching voltage: 220V DC / 250V ACterminal type: SMT/SMDswitching power: 60W / 62,5VAtesting voltage coil/contact: 1800Vrmstesting voltage contact/contact: 1000Vrmsopen contacts: 1000Vrmsminimal mechanical lifetime: 108 operationsminimal electrical lifetime: 30V DC/2A, 60W: 1x105 operationsminimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operationsoperating temperature: -40 to +85°Cweight (approximately): 0,75g

Specifications

manufacturer
Manufacturer's name 1462037-9
Coil resistance [Ω] 145
Nominal voltage [V] 4,5
Switching current [A] 2
Response voltage [V] 3,38
Release voltage [V] 0,45
Nominal capacity [mW] 140
Data Sheet

Unit price

1,37 €

Stock: 75
Next incoming goods:
CW 07/2025
1000 units

Further delivery:
CW 26/2025

Minimum order quantity 25 units or
multiples of 25.
