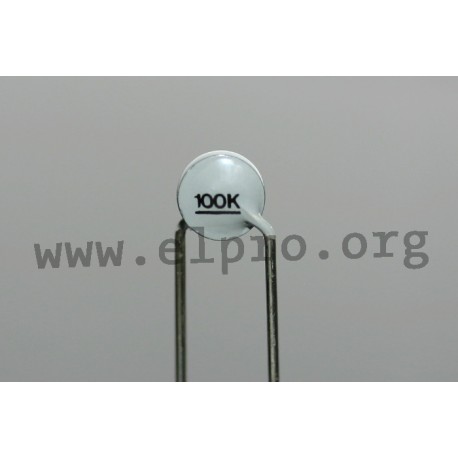

K 164 470 R

TDK NTC series K 164

  • NTC thermistors for temperature measurement, compensation and control
  • lacquered thermistor discs
  • with tinned copper leads
  • max. 2mm lacquer-free (from the lower edge of the disc)
  • heat capacity: approx. 150mJ/K
  • dissipation factor (in air): approx. 7,5mW/K
  • pitch: 5mm
  • tolerance: 10%
  • bulk
K 164 470 R

K 164 470 R

6286 K 164 470 R B57164K0471K000 B57164K0471K000 TDK NTC series K 164. NTC thermistors for temperature measurement, compensation and control lacquered thermistor discs with tinned copper leads max. 2mm lacquer-free (from the lower edge of the disc) heat capacity: approx. 150mJ/K dissipation factor (in air): approx. 7,5mW/K pitch: 5mm tolerance: 10% bulk

Specifications

manufacturer
Manufacturer's name B57164K0471K000
Resistance at Tamb = 25°C [Ω] 470
Data Sheet

Unit price

0,398 €

Stock: 990
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
