> Passive elements>NTCs/PTCs/varistors>NTC's>TDK NTC thermistors, pitch 5mm, 10%, K 164 series>K 164 2,2 k

Manufacturers

K 164 2,2 k

TDK NTC series K 164

  • NTC thermistors for temperature measurement, compensation and control
  • lacquered thermistor discs
  • with tinned copper leads

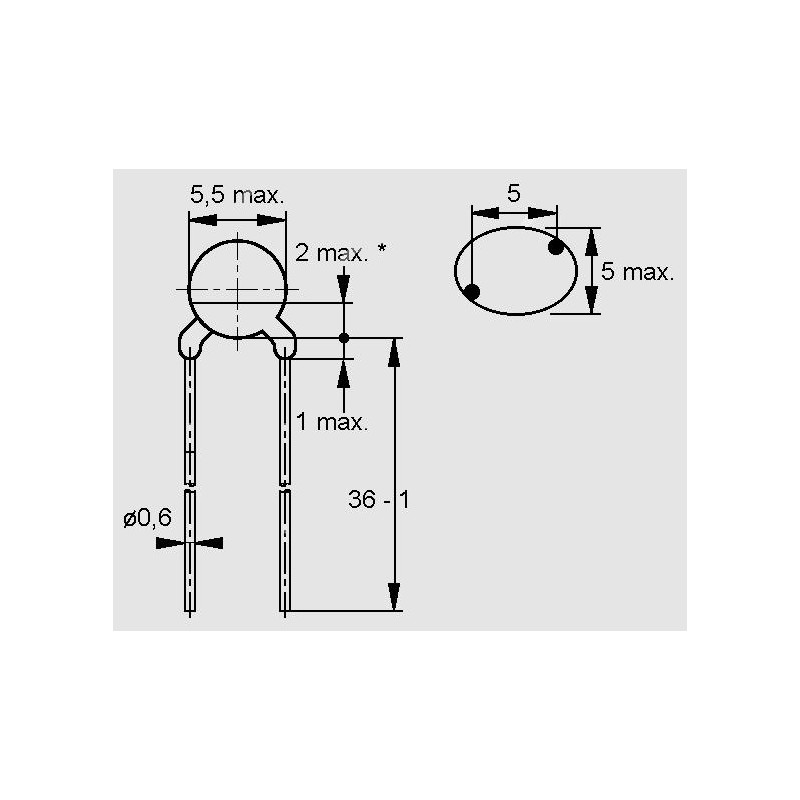

  • max. 2mm lacquer-free (from the lower edge of the disc)
  • heat capacity: approx. 150mJ/K
  • dissipation factor (in air): approx. 7,5mW/K
  • pitch: 5mm
  • tolerance: 10%
  • bulk
K 164 2,2 k

K 164 2,2 k

6282 K 164 2,2 k B57164K0222K000 B57164K0222K000 TDK NTC series K 164. NTC thermistors for temperature measurement, compensation and control lacquered thermistor discs with tinned copper leads max. 2mm lacquer-free (from the lower edge of the disc) heat capacity: approx. 150mJ/K dissipation factor (in air): approx. 7,5mW/K pitch: 5mm tolerance: 10% bulk

Specifications

manufacturer
Manufacturer's name B57164K0222K000
Resistance at Tamb = 25°C [Ω] 2200
Data Sheet

Unit price

0,341 €

Stock: 1068
Further delivery:
CW 03/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
