C 955

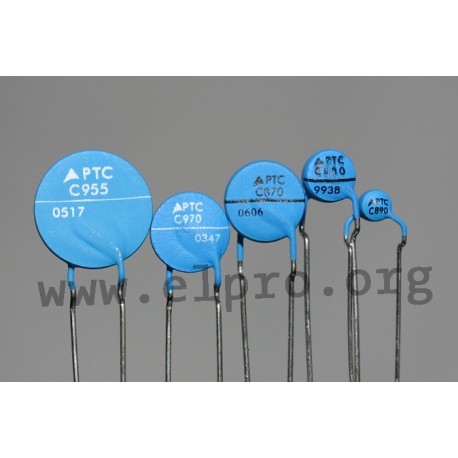

thermistors for overcurrent protection

* by Epcos
* overcurrent and short-current protection
* leaded discs coated
* pitch 5.08mm
* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over
C 8_/C 9_

C 955

14209 C 955 B59955C0120A070 B59955C0120A070 thermistors for overcurrent protection. * by Epcos* overcurrent and short-current protection* leaded discs coated* pitch 5.08mm* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over

Specifications

manufacturer
Manufacturer's name B59955C0120A070
Reverse current [A] 0,08
Rated current [mA] 580
Operating voltage [V] 30

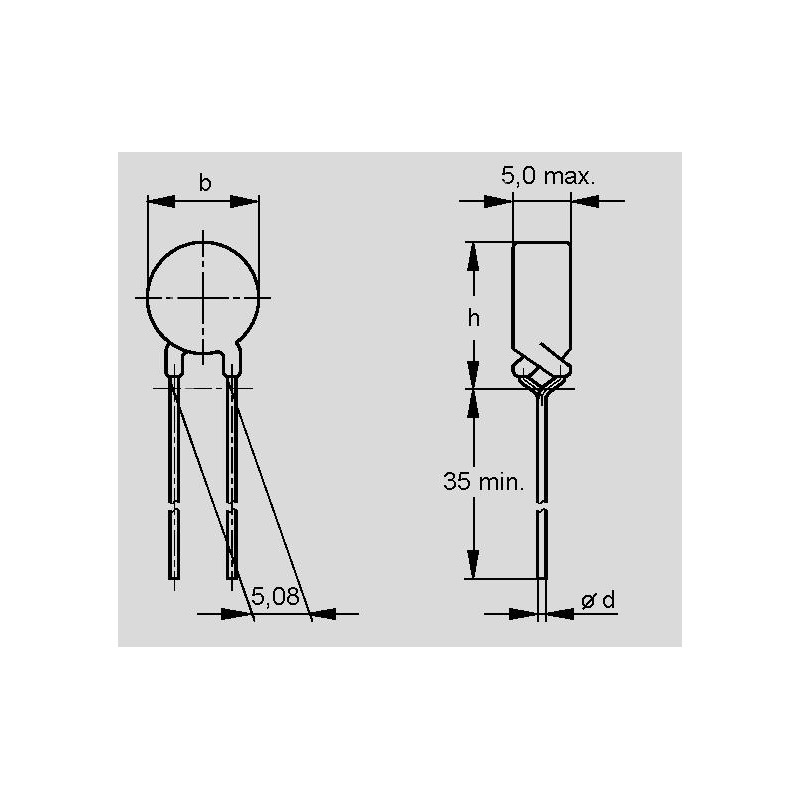

B [mm] 13,5
H [mm] 17
D [mm] 0,6
Nominal resistance [Ω] 0,8
Switching current [A] 1,7
Reference temperature [°C] 120
Data Sheet

Unit price

0,678 €

Stock: 0
Next incoming goods:
CW 48/2024
1000 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
