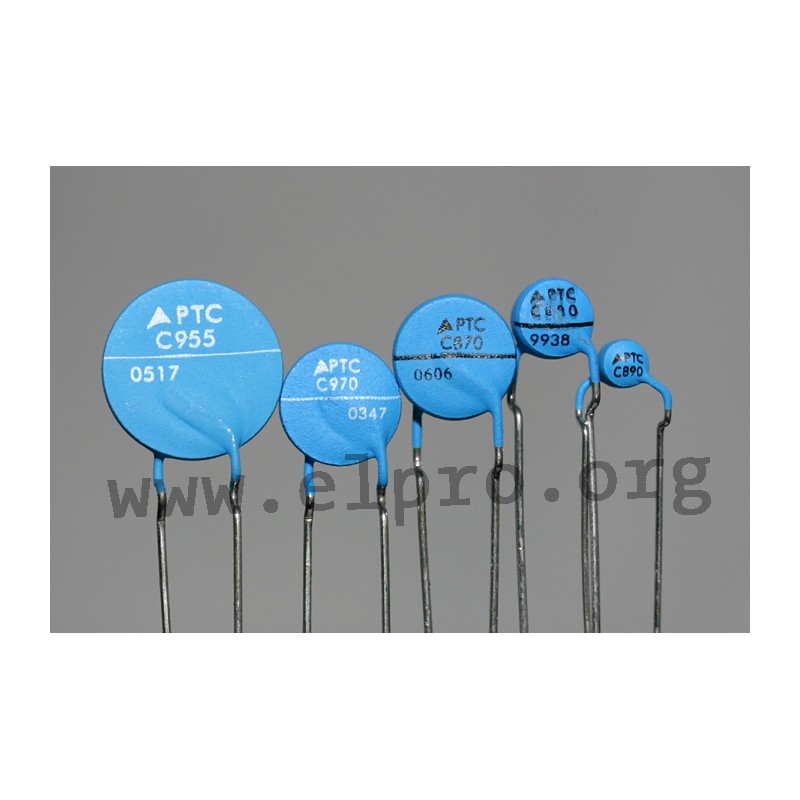

C 890

thermistors for overcurrent protection

• by Epcos
• overcurrent and short-current protection
• leaded discs coated
• pitch 5.08mm
• ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
• the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
• by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
• the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over
C 8_/C 9_

C 890

14208 C 890 B59890C0080A070 B59890C0080A070 thermistors for overcurrent protection. * by Epcos* overcurrent and short-current protection* leaded discs coated* pitch 5.08mm* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over

Specifications

manufacturer
Manufacturer's name B59890C0080A070
Reverse current [A] 0,003
Rated current [mA] 15
Operating voltage [V] 265

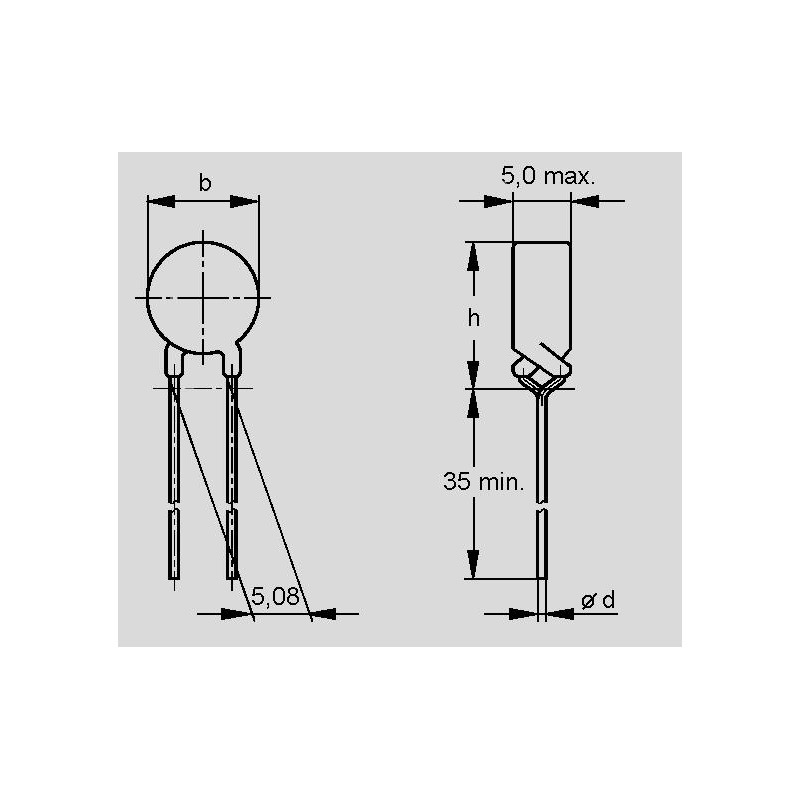

B [mm] 4
H [mm] 7,5
D [mm] 0,6
Nominal resistance [Ω] 150
Switching current [A] 0,04
Reference temperature [°C] 80
Data Sheet

Unit price

0,457 €

Stock: 1.431
Next incoming goods:
CW 13/2025
2.000 units

Further delivery:
CW 32/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
