C 860

thermistors for overcurrent protection

• by Epcos
• overcurrent and short-current protection
• leaded discs coated
• pitch 5.08mm
• ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
• the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
• by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
• the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over

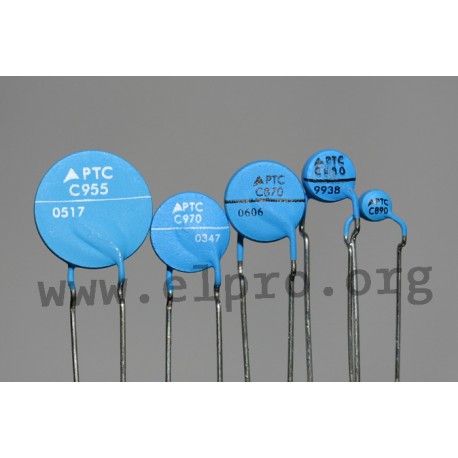

C 8_/C 9_

C 860

14205 C 860 B59860C0080A070 B59860C0080A070 thermistors for overcurrent protection. * by Epcos* overcurrent and short-current protection* leaded discs coated* pitch 5.08mm* ceramic PTC thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)* the ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value* by responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded: the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value* the PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over

Specifications

manufacturer
Manufacturer's name B59860C0080A070
Reverse current [A] 0,006
Rated current [mA] 90
Operating voltage [V] 265

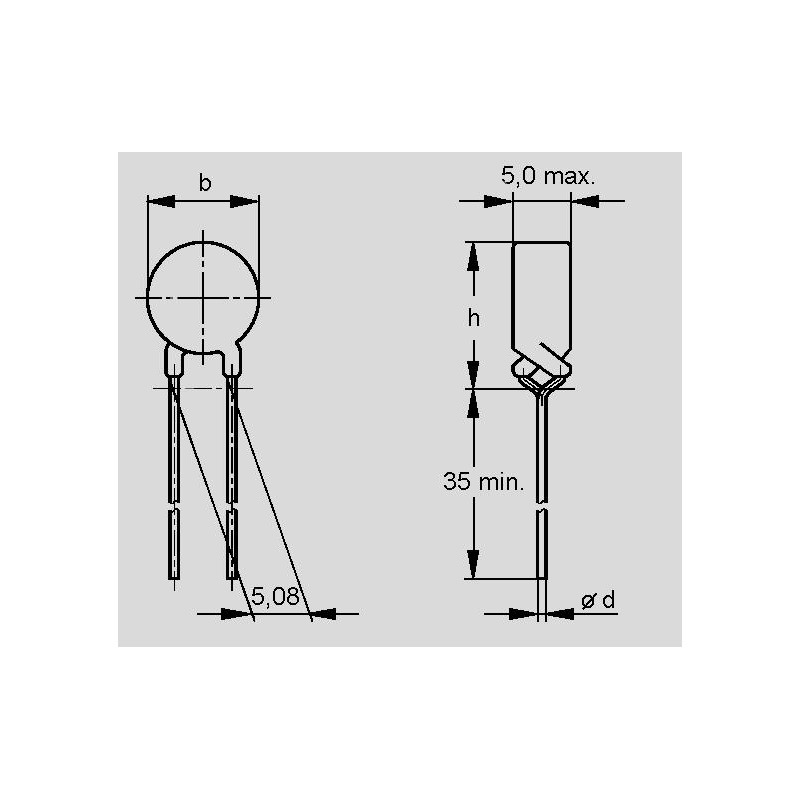

B [mm] 11
H [mm] 14,5
D [mm] 0,6
Nominal resistance [Ω] 15
Switching current [A] 0,18
Reference temperature [°C] 80
Data Sheet

Unit price

0,736 €

Stock: 1.465
Next incoming goods:
CW 19/2025
1.300 units

Further delivery:
CW 29/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
