RKT 50 VA 2x22 V

toroidal transformers 50VA by Talema

• power: 50VA
• primary voltage, ±10%: 1x230V
• open style
• by Talema
• copper loss, typ. (120°C): 6.6W


• iron loss, typ.: 0.43W
• no-load current, typ. (230V): 5mA

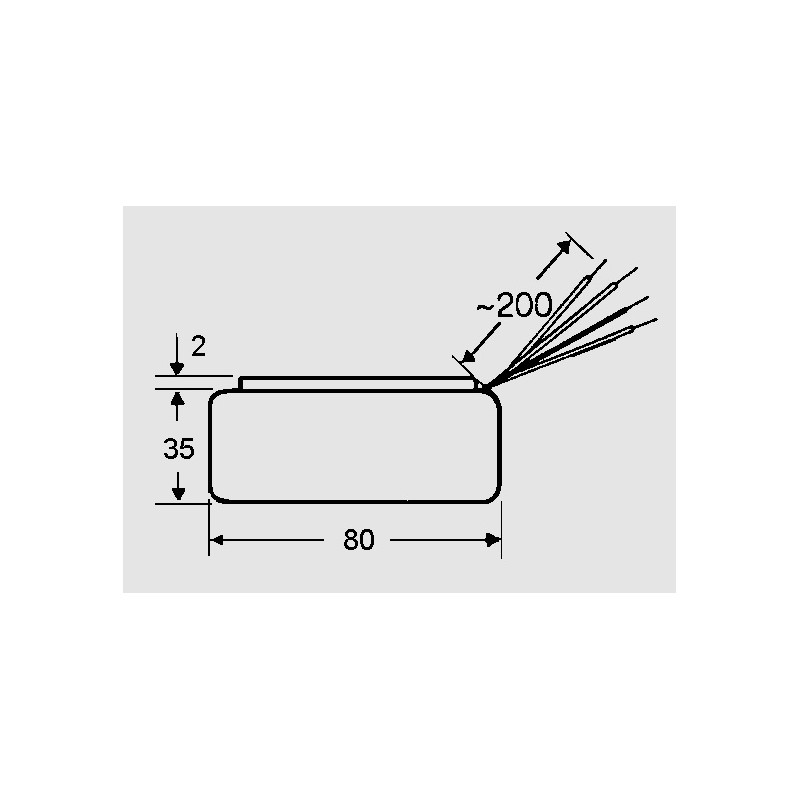

• dimensions: Ø80x35mm
• weight: 0.7kg

RKT 50 VA

RKT 50 VA 2x22 V

11369 RKT 50 VA 2x22 V 19264-P1S02 19264-P1S02 toroidal transformers 50VA by Talema. • power: 50VA• primary voltage, ±10%: 1x230V• open style• by Talema• copper loss, typ. (120°C): 6.6W • iron loss, typ.: 0.43W• no-load current, typ. (230V): 5mA• dimensions: Ø80x35mm• weight: 0.7kg

Specifications

manufacturer
Manufacturer's name 19264-P1S02
Power [VA] 50
Secondary voltage [V] 2x22
Data Sheet

Unit price

34,79 €

Stock: 23
Further delivery:
CW 05/2025
