> Passive elements>Transformers>Toroidal transformers>Talema toroidal transformers, 500VA, 1x230V>RKT 500 VA 2x18 V

Manufacturers

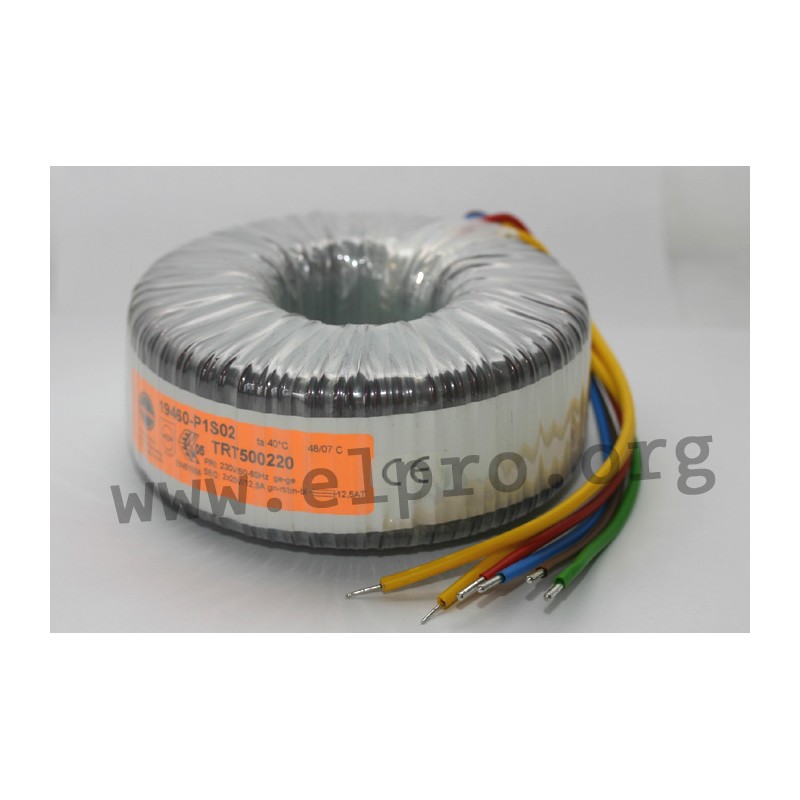

RKT 500 VA 2x18 V

toroidal transformers 500VA by Talema

• power: 500VA
• primary voltage, ±10%: 230V
• open style
• by Talema
• copper loss, typ. (120°C): 31W


• iron loss, typ.: 2.5W
• no-load current, typ. (230V): 23mA

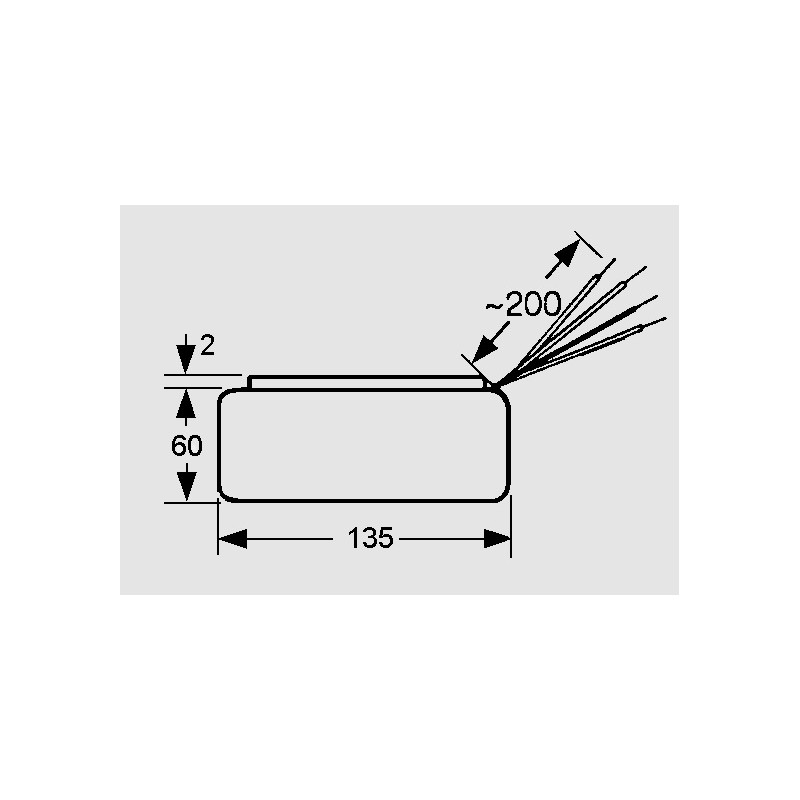

• dimensions: Ø135x60mm
• weight: 3.9kg

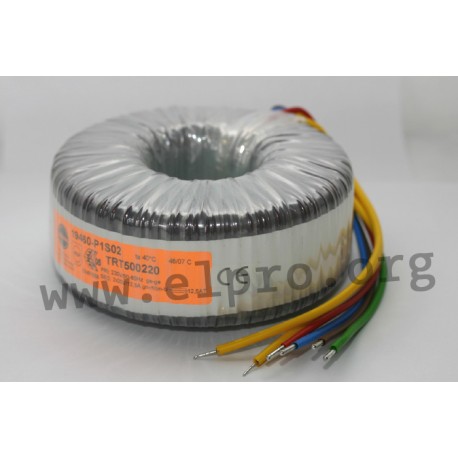

RKT 500 VA

RKT 500 VA 2x18 V

33956 RKT 500 VA 2x18 V 19464-P1S02 19464-P1S02 toroidal transformers 500VA by Talema. • power: 500VA• primary voltage, ±10%: 230V• open style• by Talema• copper loss, typ. (120°C): 31W • iron loss, typ.: 2.5W• no-load current, typ. (230V): 23mA• dimensions: Ø135x60mm• weight: 3.9kg

Specifications

manufacturer
Manufacturer's name 19464-P1S02
Power [VA] 500
Secondary voltage [V] 2x18
Data Sheet

Unit price

149,29 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 24 units or
multiples of 24.
