RKT 225 VA 2x12 V

toroidal transformers 225VA by Talema

• power: 225VA
• primary voltage, ±10%: 230V
• open style
• by Talema
• copper loss, typ. (120°C): 21.3W


• iron loss, typ.: 1.3W
• no-load current, typ. (230V): 14mA

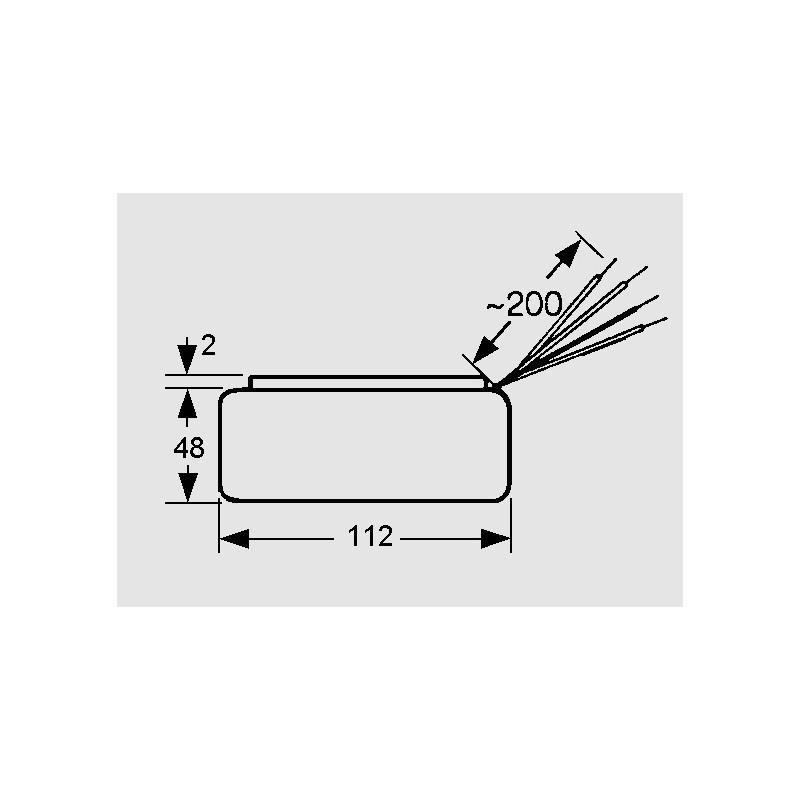

• dimensions: Ø112x48mm
• weight: 2.1kg

RKT 225 VA

RKT 225 VA 2x12 V

11328 RKT 225 VA 2x12 V 19301-P1S02 19301-P1S02 toroidal transformers 225VA by Talema. • power: 225VA• primary voltage, ±10%: 230V• open style• by Talema• copper loss, typ. (120°C): 21.3W • iron loss, typ.: 1.3W• no-load current, typ. (230V): 14mA• dimensions: Ø112x48mm• weight: 2.1kg

Specifications

manufacturer
Manufacturer's name 19301-P1S02
Power [VA] 225
Secondary voltage [V] 2x12
Data Sheet

Unit price

56,09 €

Stock: 21
Further delivery:
CW 10/2025
