RKT 160 VA 2x15 V

toroidal transformers 160VA by Talema

• power: 160VA
• primary voltage, ±10%: 230V
• open style
• by Talema
• copper loss, typ. (120°C): 20.8W


• iron loss, typ.: 0.97W
• no-load current, typ. (230V): 10mA

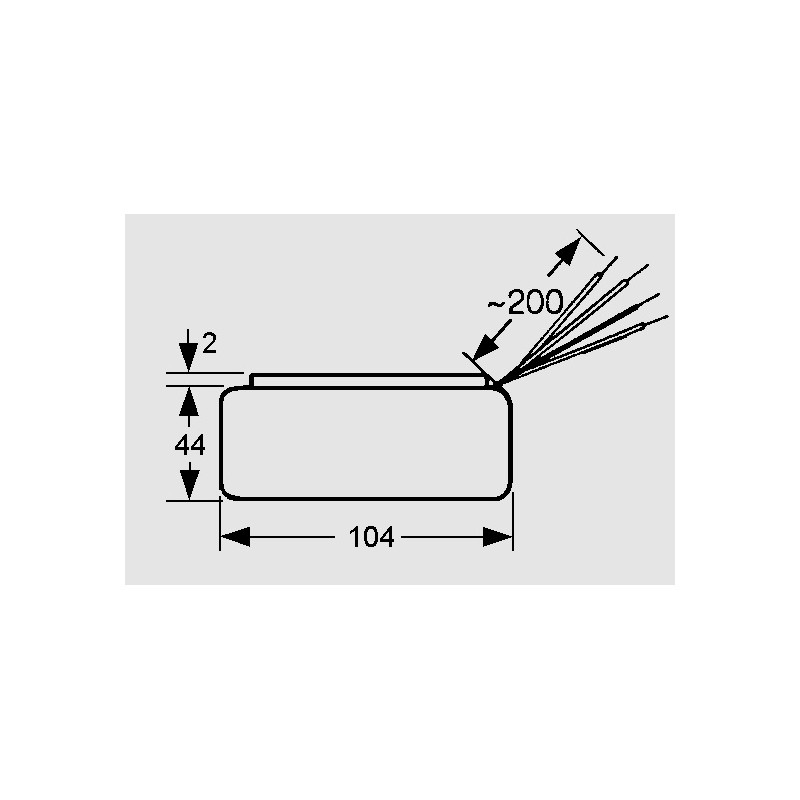

• dimensions: Ø104x44mm
• weight: 1.6kg

RKT 160 VA

RKT 160 VA 2x15 V

11320 RKT 160 VA 2x15 V 19292-P1S02 19292-P1S02 toroidal transformers 160VA by Talema. • power: 160VA• primary voltage, ±10%: 230V• open style• by Talema• copper loss, typ. (120°C): 20.8W • iron loss, typ.: 0.97W• no-load current, typ. (230V): 10mA• dimensions: Ø104x44mm• weight: 1.6kg

Specifications

manufacturer
Manufacturer's name 19292-P1S02
Power [VA] 160
Secondary voltage [V] 2x15
Data Sheet

Unit price

49,39 €

Stock: 0
Further delivery:
CW 31/2025

Minimum order quantity 30 units or
multiples of 30.
