RKT 120 VA 2x12 V 2x115 V

toroidal transformers 120VA by Talema

• power: 120VA
• primary Voltage, ±10%: 2x115V
• open style
• by Talema
• copper loss, typ. (120°C): 13.9W


• iron loss, typ.: 0.76W
• no-load current, typ. (230V): 8.5mA

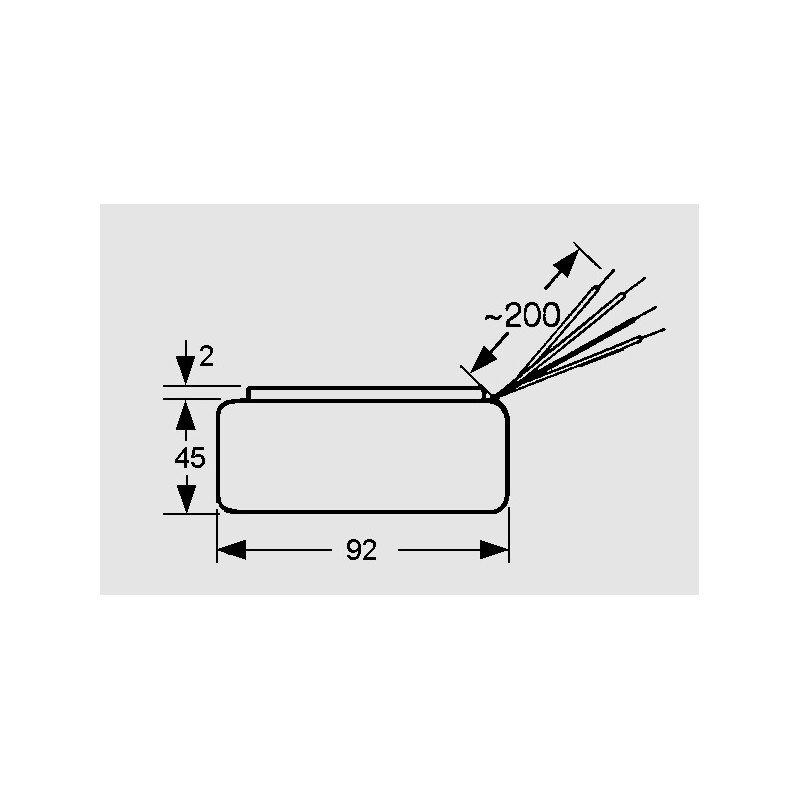

• dimensions: Ø92x45mm
• weight: 1.3kg

RKT 120 VA 2x12 V 2x115 V

RKT 120 VA 2x12 V 2x115 V

11309 RKT 120 VA 2x12 V 2x115 V 19872-P2S02 19872-P2S02 toroidal transformers 120VA by Talema. • power: 120VA• primary Voltage, ±10%: 2x115V• open style• by Talema• copper loss, typ. (120°C): 13.9W • iron loss, typ.: 0.76W• no-load current, typ. (230V): 8.5mA• dimensions: Ø92x45mm• weight: 1.3kg

Specifications

manufacturer
Manufacturer's name 19872-P2S02
Power [VA] 120
Secondary voltage [V] 2x12
Data Sheet

Unit price

46,49 €

Stock: 15
Further delivery:
CW 15/2025
