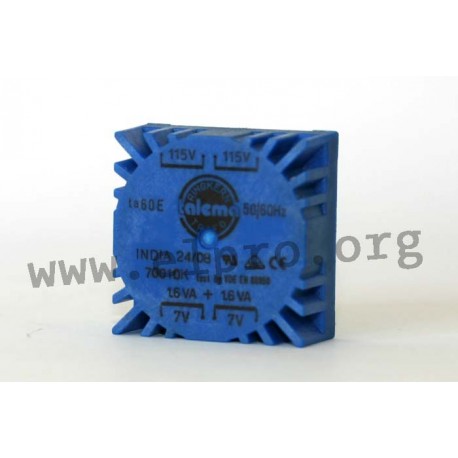

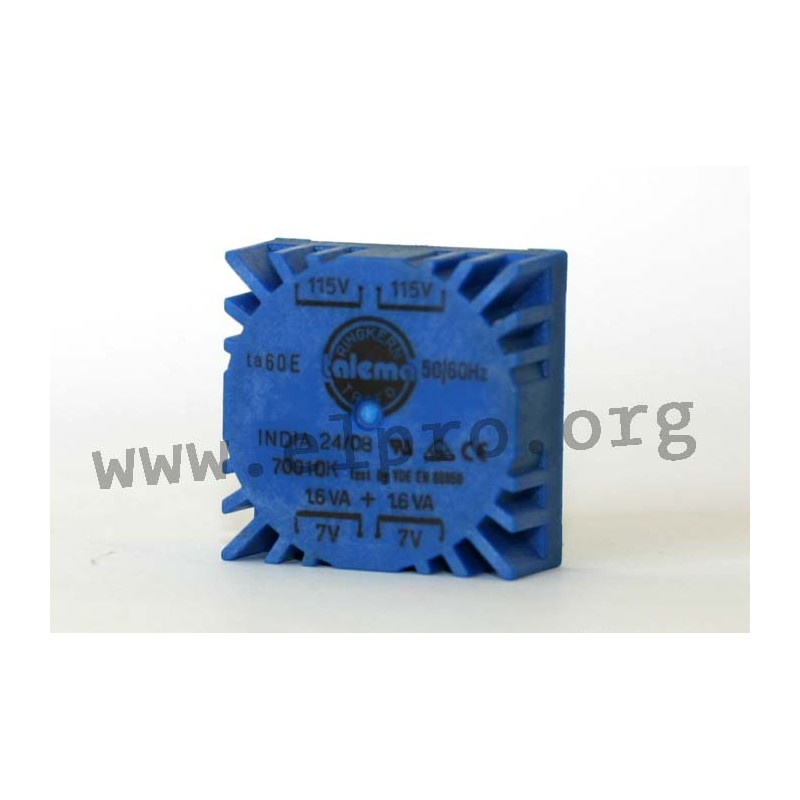

RKTV 3,2 VA 2x15 V

toroidal print transformers 3.2VA by Talema

• power: 3.2VA
• by Talema
• non short-circuit proof
• primary voltage (50/60Hz): 2x115V AC
• efficiency: 70%
• no-load current, I0typ.: 1.5mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise: 20K
• protection, 230V, delayed fuse: 32mA
• insulation class: A(105°C): E(125°C)

RKTV 3,2 VA

RKTV 3,2 VA 2x15 V

16527 RKTV 3,2 VA 2x15 V 70013K 70013K toroidal print transformers 3.2VA by Talema. • power: 3.2VA• by Talema• non short-circuit proof• primary voltage (50/60Hz): 2x115V AC• efficiency: 70%• no-load current, I0typ.: 1.5mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise: 20K• protection, 230V, delayed fuse: 32mA• insulation class: A(105°C): E(125°C)

Specifications

manufacturer
Manufacturer's name 70013K
Rated current [mA] 107
Secondary voltage [V] 2x15
Open circuit voltage [V] 2x21,4
Data Sheet

Unit price

13,09 €

Stock: 0

Minimum order quantity 120 units or
multiples of 120.
