RKTV 25 VA 2x15 V

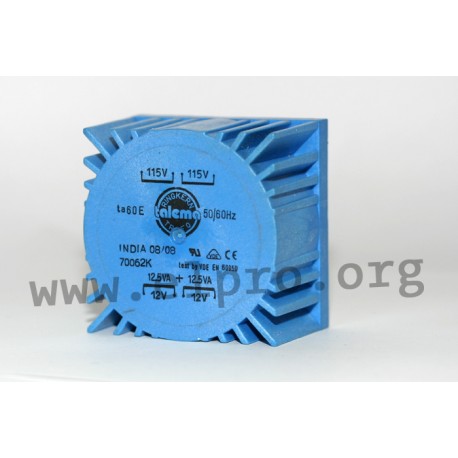

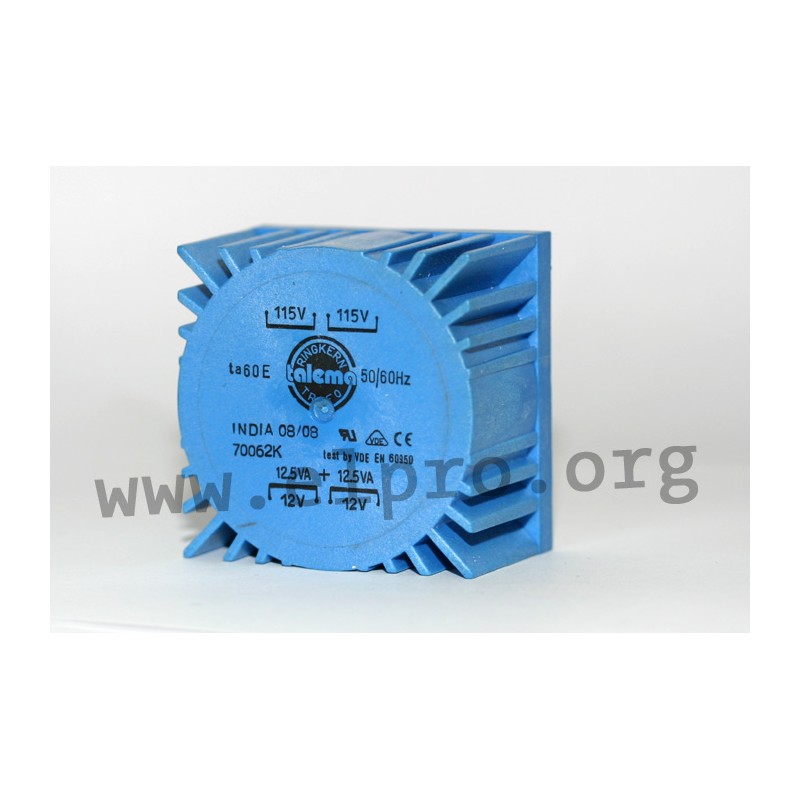

toroidal print transformers 25VA by Talema

• power: 25VA
• by Talema
• non short-circuit proof
• primary voltage (50/60Hz): 2x115V AC
• efficiency: 83%
• no-load current, Io typ.: 5mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise at rated load: 28K
• protection, 230V, delayed fuse: 160mA
• insulation class: A(105°C): E(125°C

RKTV 25 VA 2x15 V

16521 RKTV 25 VA 2x15 V 70063K 70063K toroidal print transformers 25VA by Talema. • power: 25VA• by Talema• non short-circuit proof• primary voltage (50/60Hz): 2x115V AC• efficiency: 83%• no-load current, Io typ.: 5mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise at rated load: 28K• protection, 230V, delayed fuse: 160mA• insulation class: A(105°C): E(125°C

Specifications

manufacturer
Manufacturer's name 70063K
Rated current [mA] 832
Secondary voltage [V] 2x15
Open circuit voltage [V] 2x17,8
Data Sheet

Unit price

23,29 €

Stock: 0
Next incoming goods:
CW 05/2025
14 units


Further delivery:
CW 09/2025
