70004K

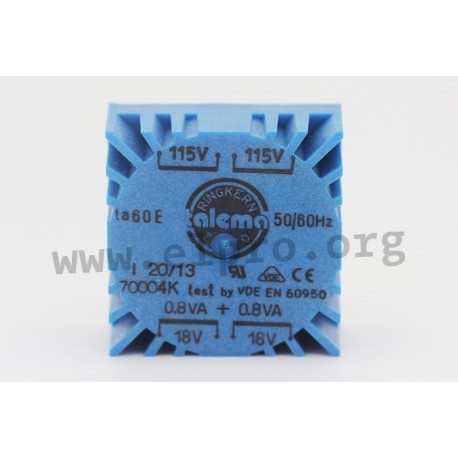

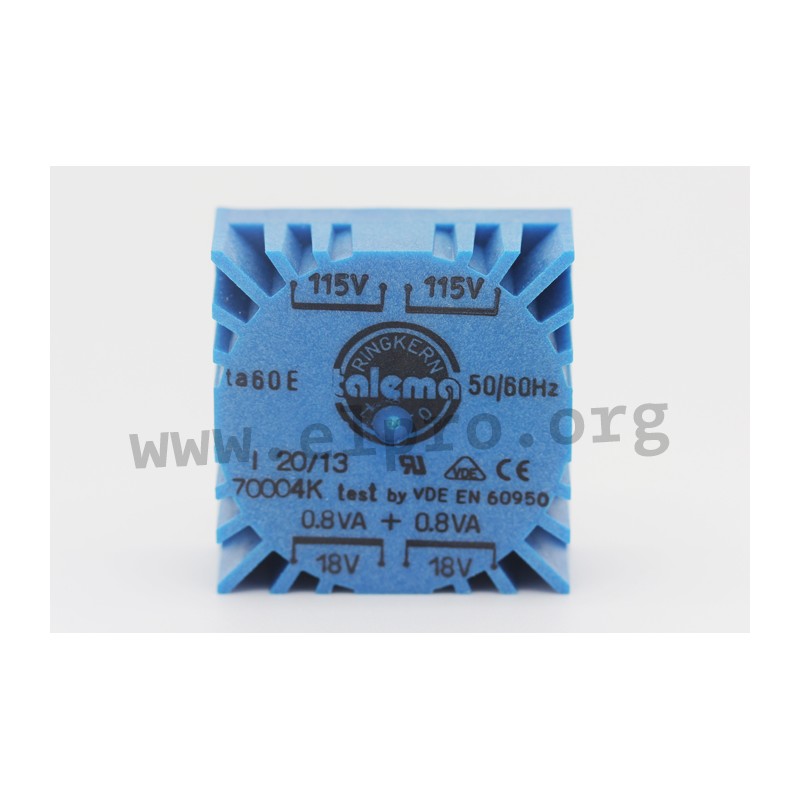

toroidal print transformers 1.6VA by Talema

• output: 1.6 VA
• by Talema
• non short-circuit proof
• primary winding (50/60Hz): 2x115V AC
• efficiency voltage: 77%
• no-load current, I0Typ.: 1mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise at rated load: 10K
• protection, 230V, delayed fuse: 32mA
• insulation class: A(105°C): E(125°C)

70004K

70004K

38713 70004K 70004K toroidal print transformers 1.6VA by Talema. • output: 1.6 VA• by Talema• non short-circuit proof• primary winding (50/60Hz): 2x115V AC• efficiency voltage: 77%• no-load current, I0Typ.: 1mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise at rated load: 10K• protection, 230V, delayed fuse: 32mA• insulation class: A(105°C): E(125°C)

Specifications

manufacturer
Manufacturer's name 70004K
Rated current [mA] 44
Secondary voltage [V] 2x18
Open circuit voltage [V] 2x23,4
Data Sheet

Unit price

12,49 €

Stock: 0

Minimum order quantity 35 units or
multiples of 35.
