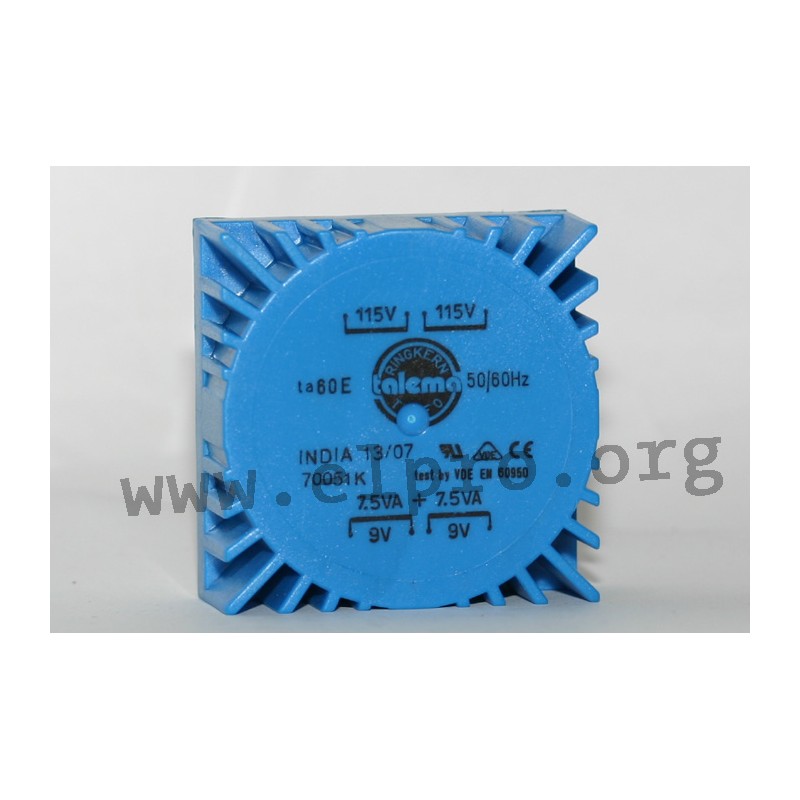

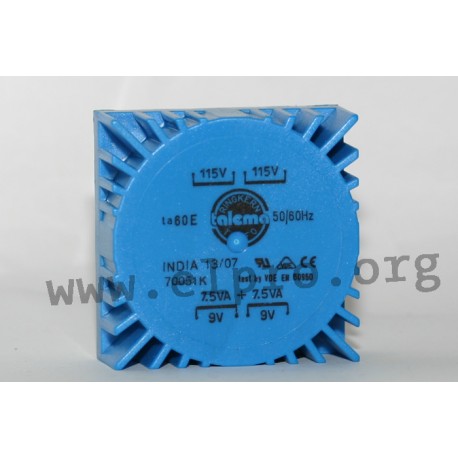

RKTV 15 VA 2x9 V

toroidal print transformers 15VA by Talema

• power: 15VA
• by Talema
• non short-circuit proof
• primary voltage (50/60Hz): 2x115V AC
• efficiency: 80%
• no-load current, I0typ.: 4mA


• test voltage (prim./sec.): 4kV
• temperature class: T60/E
• temperature rise at rated load: 27K
• protection, 230V, delayed fuse: 100mA
• insulation class: A(105°C): E(125°C)

Talema 70000K series

RKTV 15 VA 2x9 V

16519 RKTV 15 VA 2x9 V 70051K 70051K toroidal print transformers 15VA by Talema. • power: 15VA• by Talema• non short-circuit proof• primary voltage (50/60Hz): 2x115V AC• efficiency: 80%• no-load current, I0typ.: 4mA • test voltage (prim./sec.): 4kV• temperature class: T60/E• temperature rise at rated load: 27K• protection, 230V, delayed fuse: 100mA• insulation class: A(105°C): E(125°C)

Specifications

manufacturer
Manufacturer's name 70051K
Rated current [mA] 833
Secondary voltage [V] 2x9
Open circuit voltage [V] 2x11,1
Data Sheet

Unit price

17,59 €

Stock: 58
