SDF 160µH 1,6A

high efficiency storage chokes

* high efficiency and quality
* operating frequency up to 200kHz
* small compact size
* highly stable inductance
* meeting class GFK (-40...+125°C, humidity class F) per DIN40040

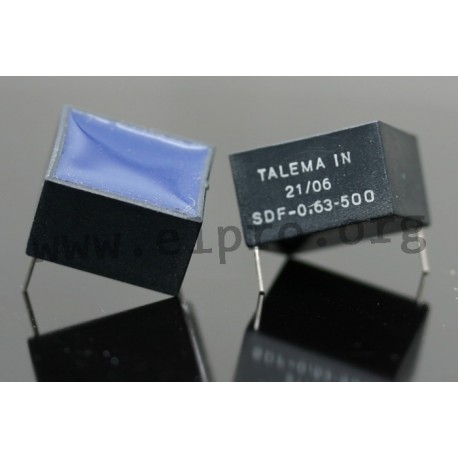

Talema high efficiency storage choke

SDF 160µH 1,6A

6539 SDF 160µH 1,6A SDF-1,6-160 SDF-1,6-160 high efficiency storage chokes. * high efficiency and quality* operating frequency up to 200kHz* small compact size* highly stable inductance* meeting class GFK (-40...+125°C, humidity class F) per DIN40040

Specifications

manufacturer
Manufacturer's name SDF-1,6-160
Rated current [mA] 1600
D x L [mm] 1
Internal resistance [mΩ] 127
Inductance [µH] 160
Wire diameter [mm] 0,8
Data Sheet

Unit price

3,39 €

Stock: 0

Minimum order quantity 1.500 units or
multiples of 1.500.
