SAV-3.15-150

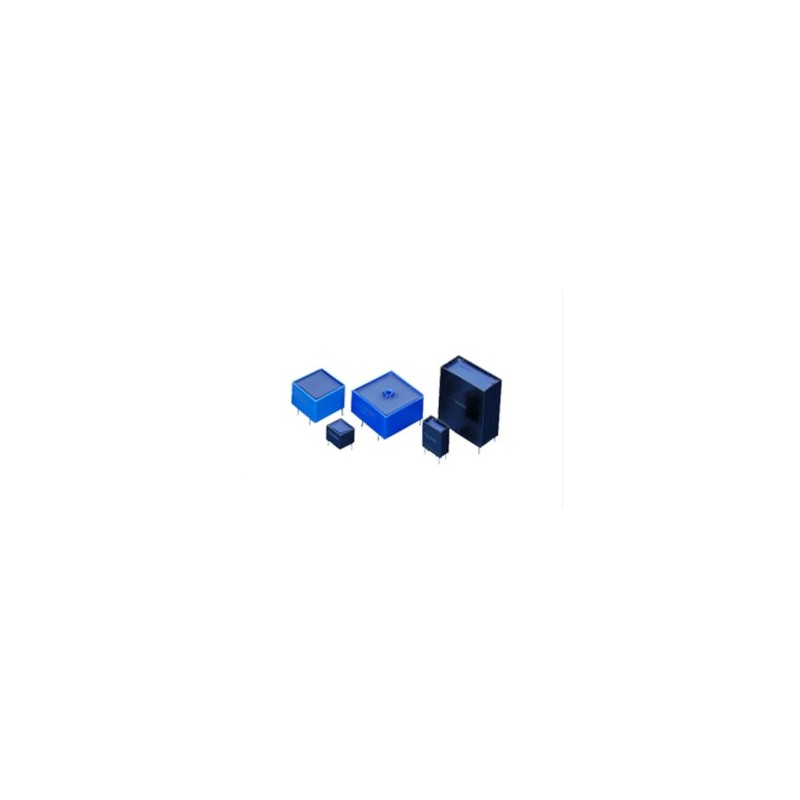

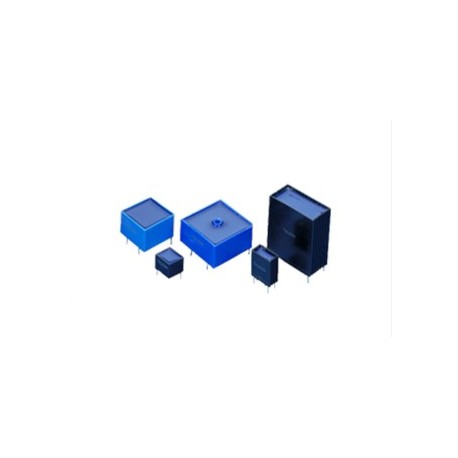

Talema inductor series SAV

Storage chokes in a compact housing with a high power density. These inductors are potted and have a vertical design. They have a high efficiency as well as a high stability and a low temperature rise. They are suitable for operating frequencies of up to 100kHz as well as for use in switching power supplies. We offer the type SAV-3.15-150 of this Talema series.

  • rated current: 3,15A
  • operating temperature: -40 to +125°C
  • potted
SAV-3.15-150, Talema inductors, potted, SAV series

SAV-3.15-150

244163 SAV-3.15-150 SAV-3.15-150 Talema inductor series SAV. Storage chokes in a compact housing with a high power density. These inductors are potted and have a vertical design. They have a high efficiency as well as a high stability and a low temperature rise. They are suitable for operating frequencies of up to 100kHz as well as for use in switching power supplies. We offer the type SAV-3.15-150 of this Talema series. rated current: 3,15A operating temperature: -40 to +125°C potted

Specifications

manufacturer
Manufacturer's name SAV-3.15-150
Inductance, no load [µH] 165
Inductive load, min [µH] 150
Rated current [A] 3,15
Stored energy [µJ] 736
Internal resistance [Ω] 0,054
Data Sheet

Unit price

4,69 €

Stock: 145
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
