> Passive elements>Inductors>Storage chokes>Talema inductors, potted, SAF series>SAF-4.0-1000

Manufacturers

SAF-4.0-1000

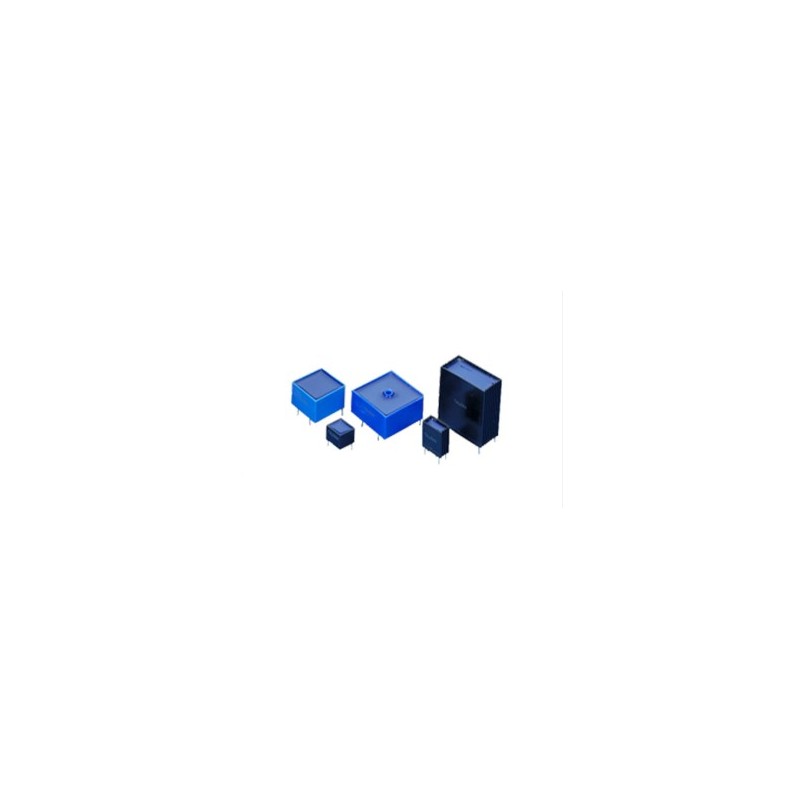

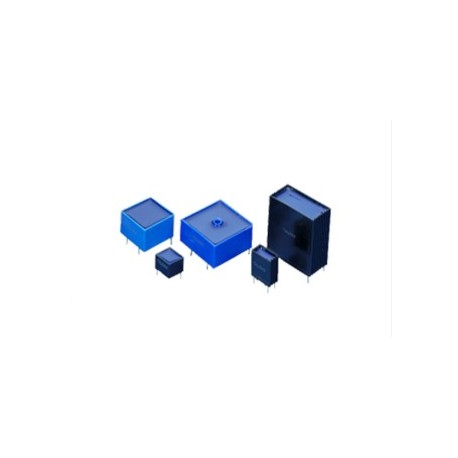

Talema inductor series SA

Storage chokes in a potted housing with a high power density. These components have high inductance/current ratings and a low temperature rise. They are suitable for operating frequencies of up to 100kHz as well as for use in switching power supplies and have a high efficiency as well as a high stability. We offer the following types of this Talema series: SAF-4.0-1000, SAF-16-68 and SAF-20-47.

  • rated current: 4 to 20A
  • operating temperature: -40 to +125°C
  • potted
SAF-4.0-1000, Talema inductors, potted, SA series

SAF-4.0-1000

244160 SAF-4.0-1000 SAF-4.0-1000 Talema inductor series SA. Storage chokes in a potted housing with a high power density. These components have high inductance/current ratings and a low temperature rise. They are suitable for operating frequencies of up to 100kHz as well as for use in switching power supplies and have a high efficiency as well as a high stability. We offer the following types of this Talema series: SAF-4.0-1000, SAF-16-68 and SAF-20-47. rated current: 4 to 20A operating temperature: -40 to +125°C potted

Specifications

manufacturer
Manufacturer's name SAF-4.0-1000
Inductance, no load [µH] 1191
Inductive load, min [µH] 1000
Rated current [A] 4
Stored energy [µJ] 8006
Internal resistance [Ω] 0,153
Data Sheet

Unit price

8,99 €

Stock: 35
Further delivery:
CW 03/2025

Minimum order quantity 5 units or
multiples of 5.
