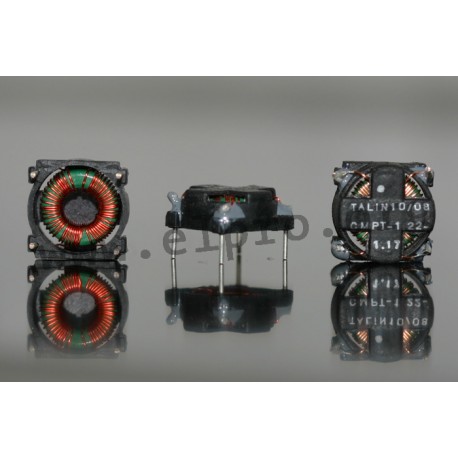

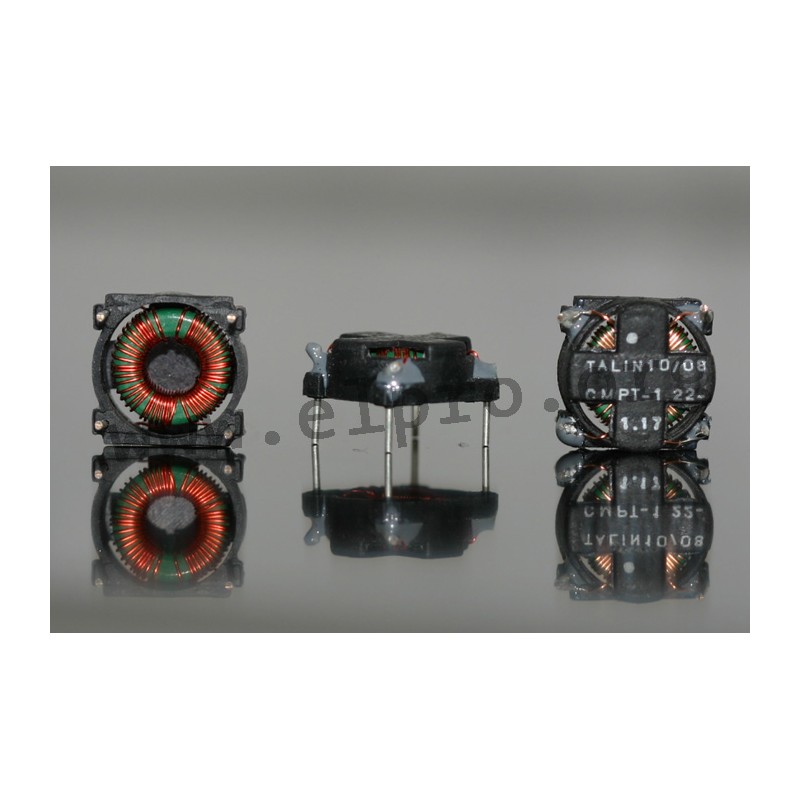

CMPT-7,20-0,53

current compensated suppression chokes

* vertical
* by Talema
* designed for DC/DC Converters
* two separated windings for minimum capacitance
* terminals through 4 tin soldered-in pins
* operating temperature -40 to 125°C
* meets lead free reflow level J-STD-020C
CMPT_

CMPT-7,20-0,53

29578 CMPT-7,20-0,53 CMPT-7.2-0.53 CMPT-7.2-0.53 current compensated suppression chokes. * vertical* by Talema* designed for DC/DC Converters* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Specifications

manufacturer
Manufacturer's name CMPT-7.2-0.53

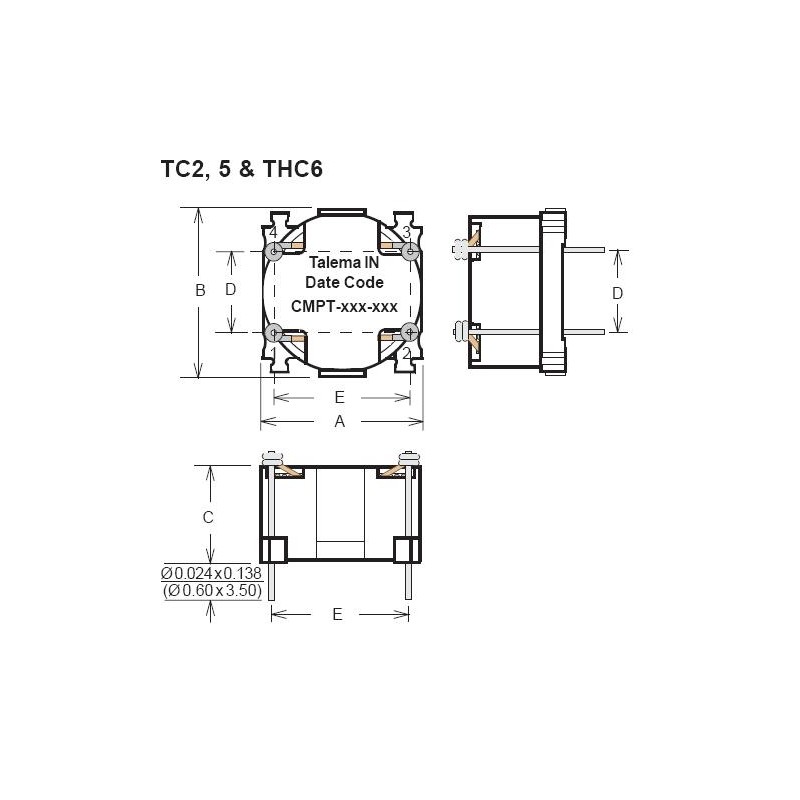

Case THC6
E [mm] 15,24mm
Rated current [mA] 7200
A [mm] 25,4
Width [mm] 28,05
E [mm] 15,24
D [mm] 25,4
Inductance [µH] 0,53
C [mm] 9,08
DC resistance [Ω] 15
Data Sheet

Unit price

3,79 €

Stock: 0

Minimum order quantity 100 units or
multiples of 100.
