CMPT-2,80-1,47

current compensated suppression chokes

• vertical
• by Talema
• designed for DC/DC Converters
• two separated windings for minimum capacitance
• terminals through 4 tin soldered-in pins
• operating temperature -40 to 125°C
• meets lead free reflow level J-STD-020C
CMPT_

CMPT-2,80-1,47

29571 CMPT-2,80-1,47 CMPT-2.8-1.47 CMPT-2.8-1.47 current compensated suppression chokes. * vertical* by Talema* designed for DC/DC Converters* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Specifications

manufacturer
Manufacturer's name CMPT-2.8-1.47

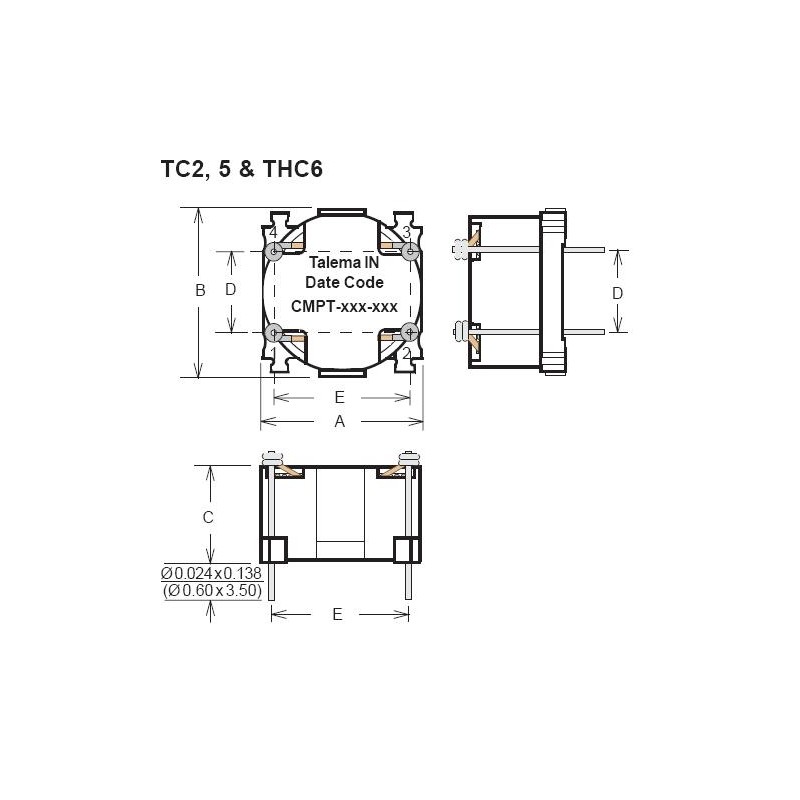

Case TC5
E [mm] 12,7mm
Rated current [mA] 2800
A [mm] 16,82
Width [mm] 19,31
E [mm] 12,7
D [mm] 12,7
Inductance [µH] 1,47
C [mm] 9,2
DC resistance [Ω] 80
Data Sheet

Unit price

2,79 €

Stock: 0

Minimum order quantity 100 units or
multiples of 100.
