KDST 1,8mH/6,0A

Talema choke series CA

Current-compensated chokes in a partially pottes housing. These inductors have a vertical design and have two separate windings for a low capacitive resistance. They are suitable for an operating temperature range of -40 to +125°C and have four soldering pins (0,6x0,88mm). We offer various types of this Talema series.

  • vertical
  • partially potted
  • test voltage: 1500V AC (60sec)
  • operating temperature: -40 to +125°C
KDST_

KDST 1,8mH/6,0A

32465 KDST 1,8mH/6,0A 21227 21227 Talema choke series CA. Current-compensated chokes in a partially pottes housing. These inductors have a vertical design and have two separate windings for a low capacitive resistance. They are suitable for an operating temperature range of -40 to +125°C and have four soldering pins (0,6x0,88mm). We offer various types of this Talema series. vertical partially potted test voltage: 1500V AC (60sec) operating temperature: -40 to +125°C

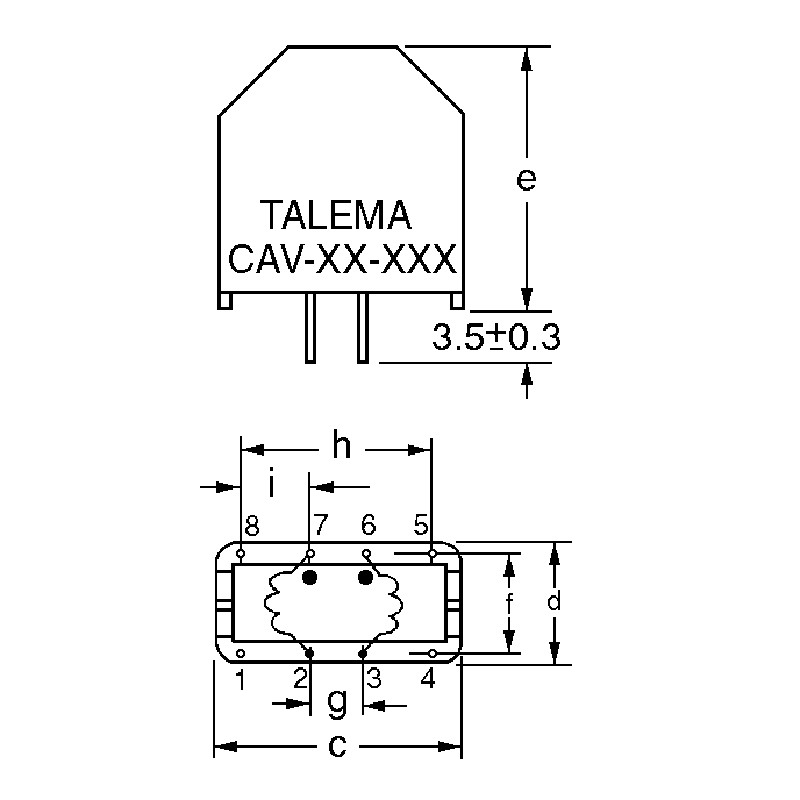

Specifications

manufacturer
Manufacturer's name 21227
E [mm] 35,5
Rated current [mA] 6000
E [mm] 35,5
D [mm] 17,5
F [mm] 15
Internal resistance [mΩ] 16
G [mm] 12,5
C [mm] 32,5
Rated inductance [mH] 1,8
Data Sheet

Unit price

4,19 €

Stock: 48
Next incoming goods:
CW 02/2025
375 units

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
