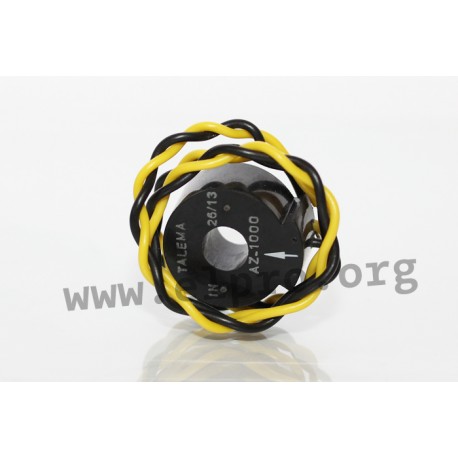

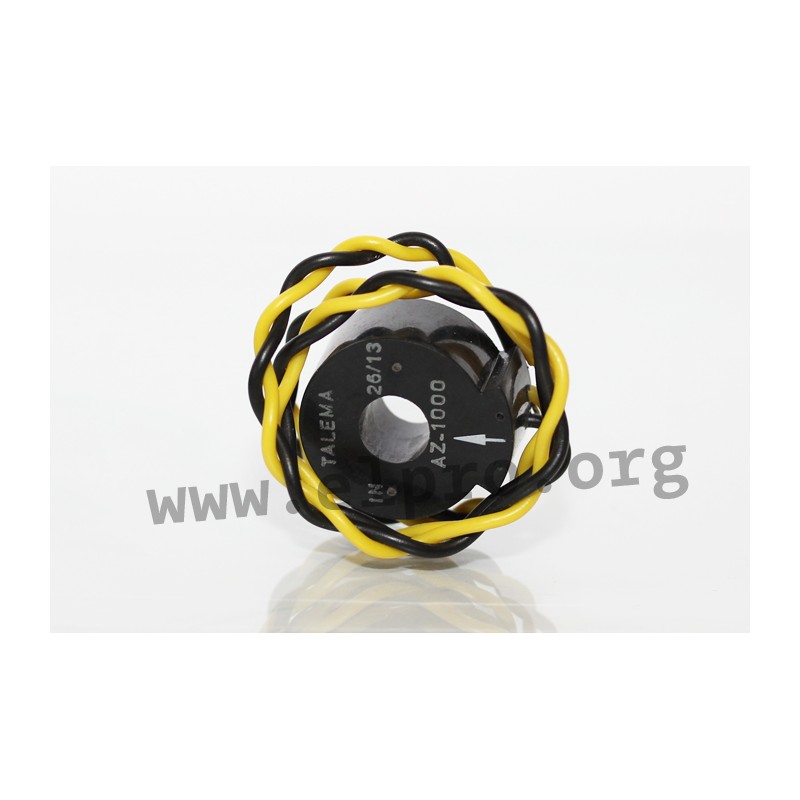

AZ-0750

current transformers AZ by Talema

* for 50/60 Hz
* wired
* series: AZ

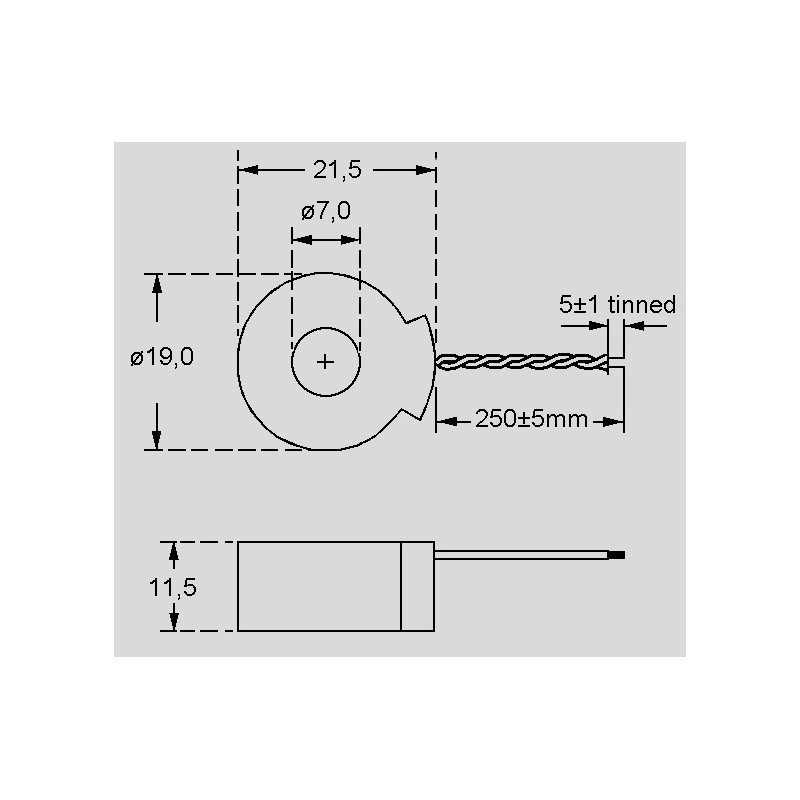

* 250mm connection lead for ease of installation
* fully potted
* centerhole for current-carrying line
* high output voltage in small package
* rated burdon resistor: 33Ω
* operating temperature: -40...+85°C
* by Talema

* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns
AZ-0750

AZ-0750

43273 AZ-0750 AZ-0750 current transformers AZ by Talema. * for 50/60 Hz* wired* series: AZ* 250mm connection lead for ease of installation* fully potted* centerhole for current-carrying line* high output voltage in small package* rated burdon resistor: 33Ω* operating temperature: -40...+85°C* by Talema* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns

Specifications

manufacturer
Manufacturer's name AZ-0750
Turns ratio 750 1
Rated input current [A] 40
Data Sheet

Unit price

4,49 €

Stock: 4

Minimum order quantity 1 to 4 units or multiples of 200 plus 0 to 4 .
