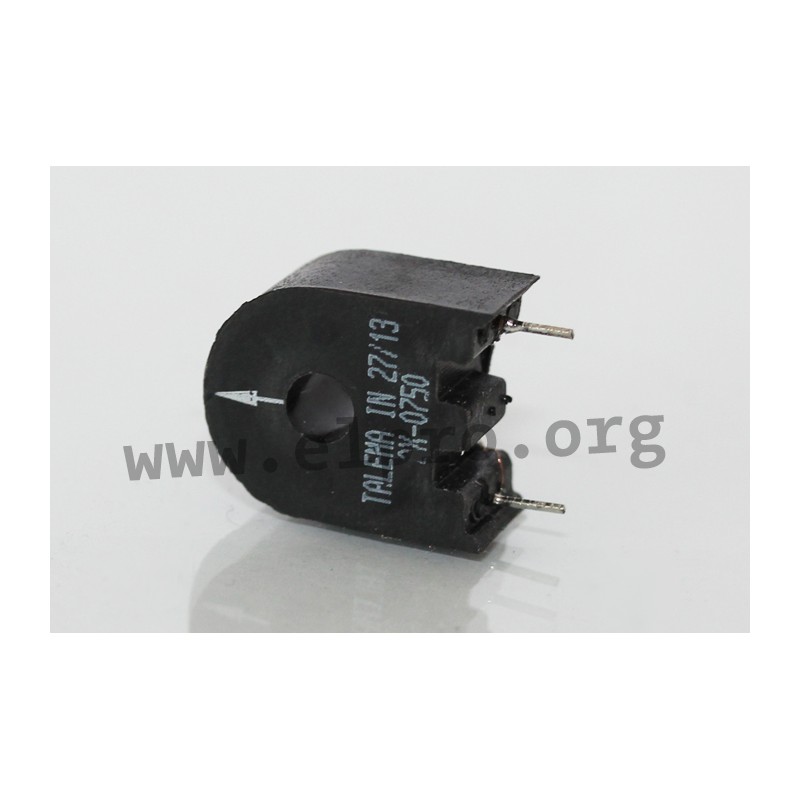

AX-1500

current transformers AX by Talema

* for 50/60 Hz
* for optimal PC board mounting
* fully potted
* series: AX
* centerhole for current-carrying line
* high output voltage in small package
* high saturation current
* rated burdon resistor: 100Ω
* operating temperature: -40...+120°C
* by Talema

* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

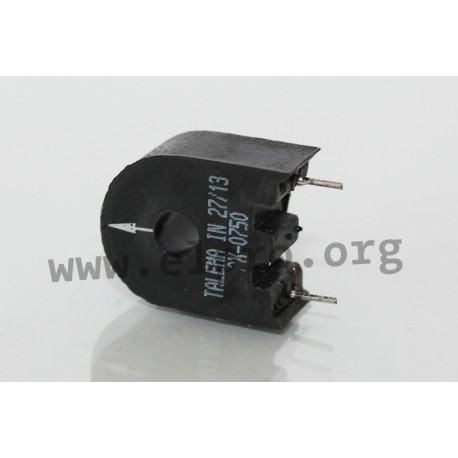

Series AX by Talema

AX-1500

43271 AX-1500 AX-1500 current transformers AX by Talema. * for 50/60 Hz* for optimal PC board mounting* fully potted* series: AX* centerhole for current-carrying line* high output voltage in small package* high saturation current* rated burdon resistor: 100Ω* operating temperature: -40...+120°C* by Talema* AC series of current transformers operate as the sealed secondary of a current transformer, while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns.

Specifications

manufacturer
Manufacturer's name AX-1500
Turns ratio 1500 1
Rated input current [A] 15
Data Sheet

Unit price

2,69 €

Stock: 1965

Minimum order quantity 5 units or
multiples of 5.
