US 1 G

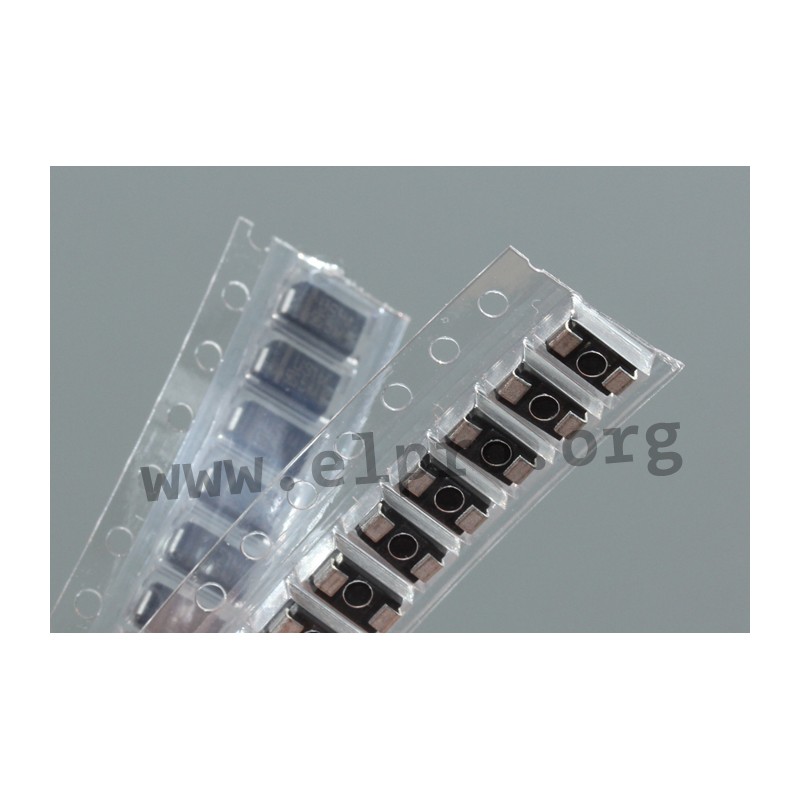

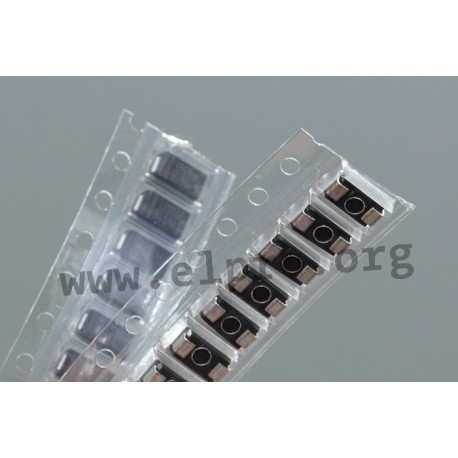

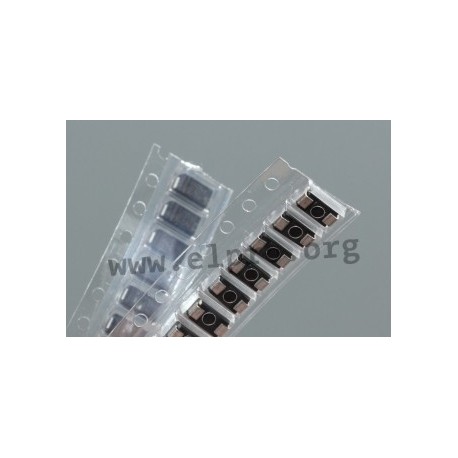

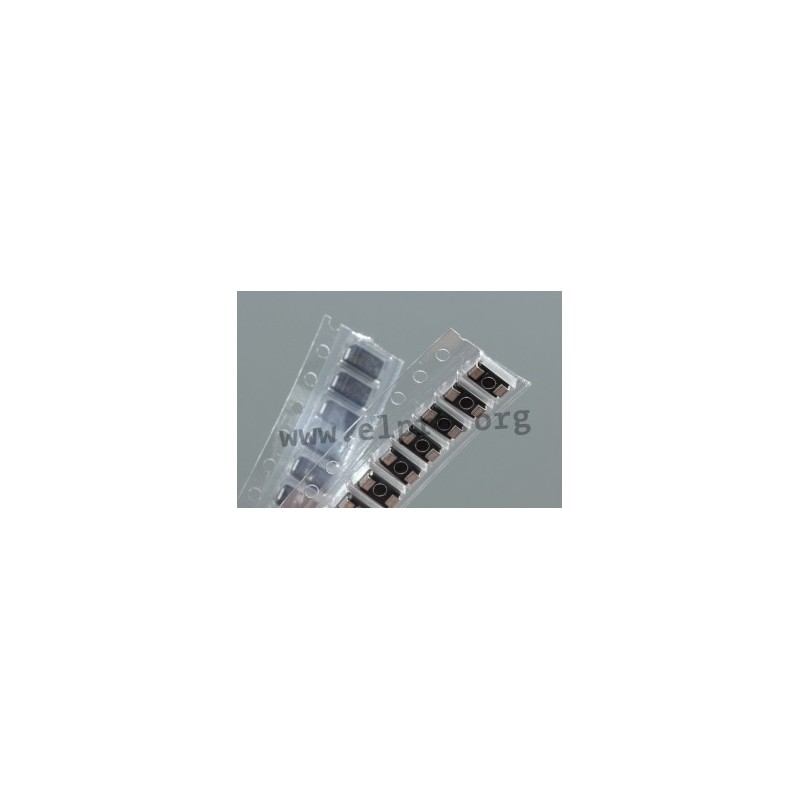

Taiwan Semiconductor SMD rectifier diode series US1

  • super fast rectifier diodes

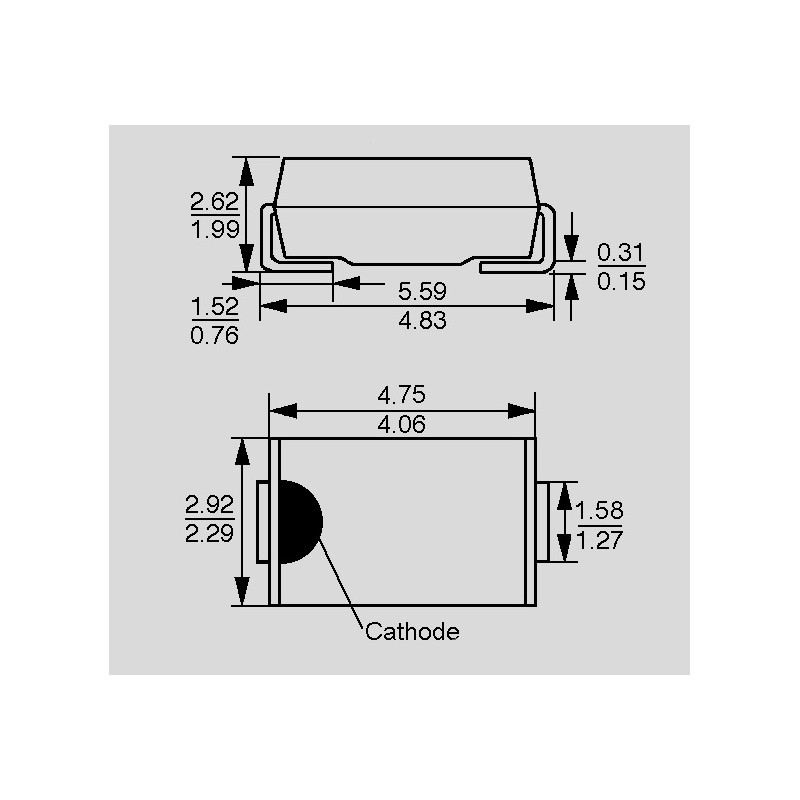

  • in a DO214AC/SMA housing
  • glass passivated
  • comply with UL94V-0
  • with a low power loss
  • operating temperature: -55 to +150°C
  • forward current: 1A
US 1

US 1 G

38749 US 1 G US1G US1G Taiwan Semiconductor SMD rectifier diode series US1. super fast rectifier diodes in a DO214AC/SMA housing glass passivated comply with UL94V-0 with a low power loss operating temperature: -55 to +150°C forward current: 1A

Specifications

manufacturer
Manufacturer's name US1G
Case DO214AC/SMA
Peak forward surge current [A] 30
Max. reverse recovery time [ns] 50
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 1
Data Sheet

Unit price

0,074 €

Stock: 26900
Further delivery:
CW 07/2025

Minimum order quantity 100 units or
multiples of 100.
