UR 4 KB 60

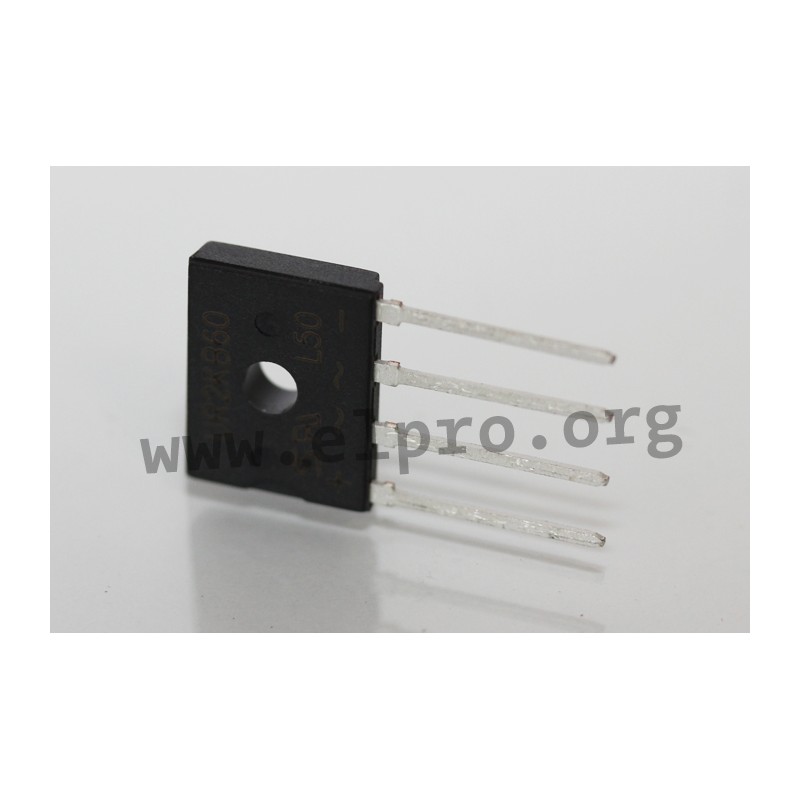

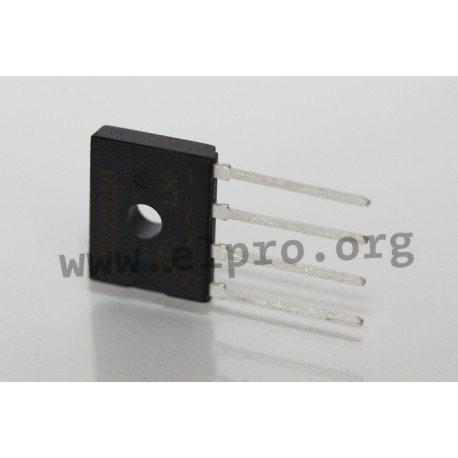

Taiwan Semiconductor flat rectifier series UR_KB_

  • bridge rectifiers
  • in an In-Line housing with a circular hole

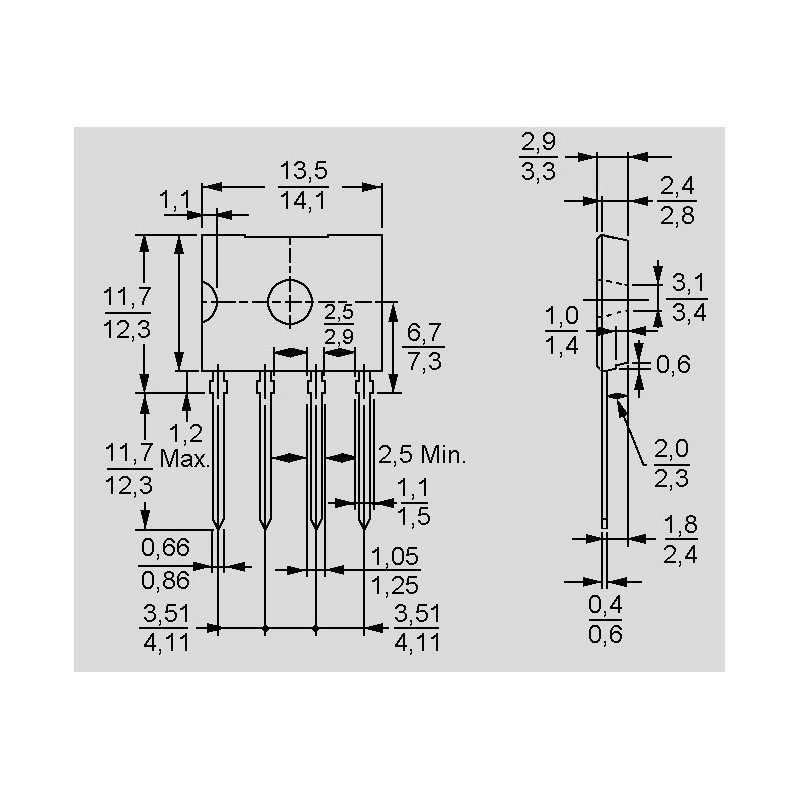

  • pin spacing 3,8/3,8mm
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • solderabiliy: max. 260°C/10s
  • operating temperature: -55 to +150°C
  • forward current: 2 to 4A
UR_KB_

UR 4 KB 60

45899 UR 4 KB 60 UR4KB60-B UR4KB60-B Taiwan Semiconductor flat rectifier series UR_KB_. bridge rectifiers  in an In-Line housing with a circular hole pin spacing 3,8/3,8mm comply with UL94V-0 as well as MIL-STD-202, Meth. 208 solderabiliy: max. 260°C/10s operating temperature: -55 to +150°C forward current: 2 to 4A

Specifications

manufacturer
Manufacturer's name UR4KB60-B
Case In-Line
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 4
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

0,325 €

Stock: 0
Next incoming goods:
CW 22/2025
1500 units

Further delivery:
CW 27/2025

Minimum order quantity 10 units or
multiples of 10.
