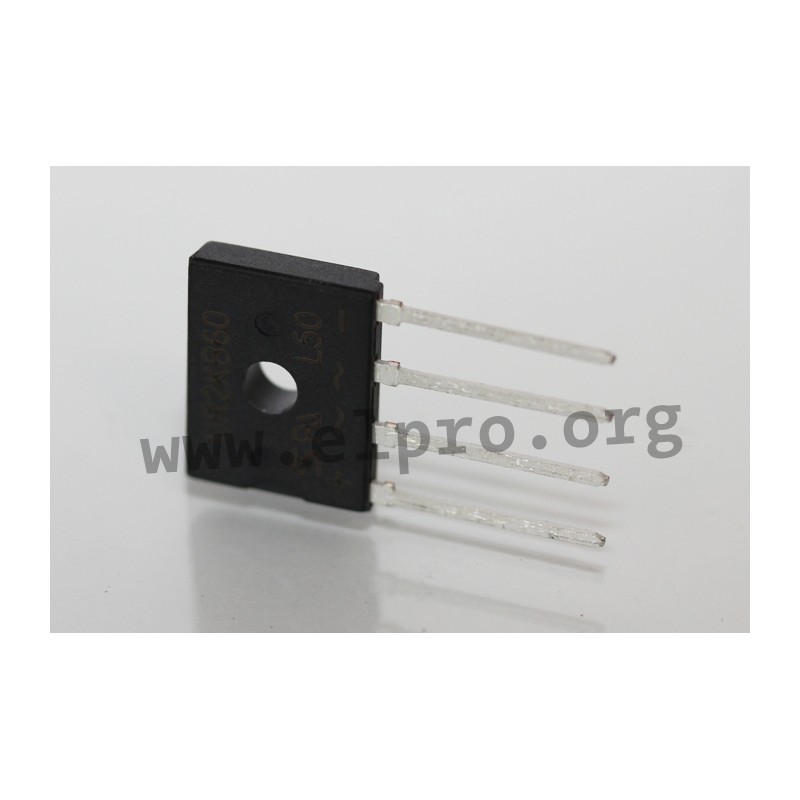

UR 3 KB 100

Taiwan Semiconductor flat rectifier series UR_KB_

  • bridge rectifiers

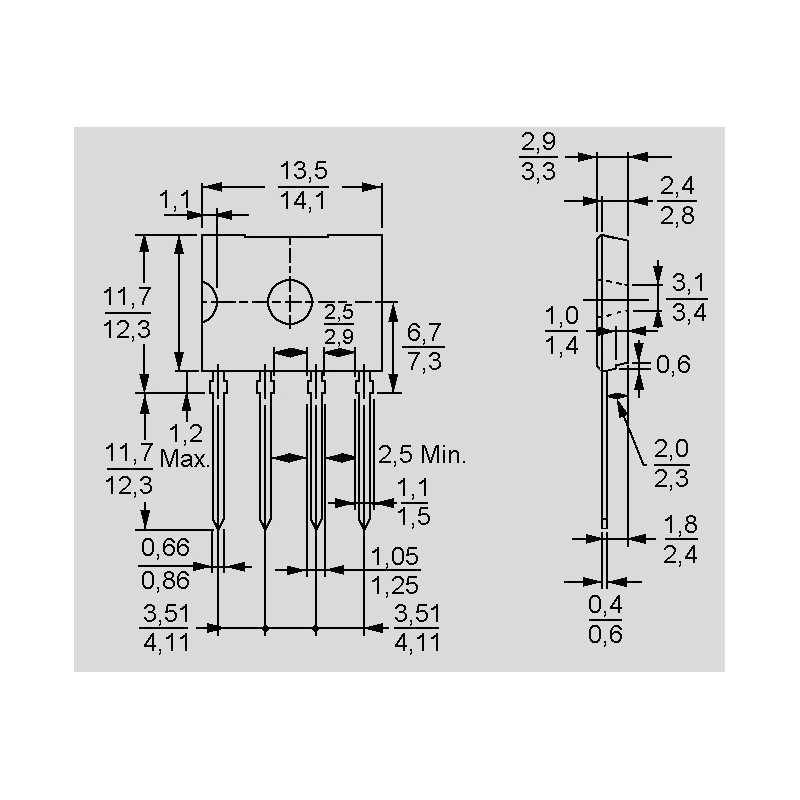

  • in an In-Line housing with a circular hole
  • pin spacing 3,8/3,8mm
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • solderabiliy: max. 260°C/10s
  • operating temperature: -55 to +150°C
  • forward current: 2 to 4A
UR_KB_

UR 3 KB 100

45898 UR 3 KB 100 UR3KB100 UR3KB100 Taiwan Semiconductor flat rectifier series UR_KB_. bridge rectifiers  in an In-Line housing with a circular hole pin spacing 3,8/3,8mm comply with UL94V-0 as well as MIL-STD-202, Meth. 208 solderabiliy: max. 260°C/10s operating temperature: -55 to +150°C forward current: 2 to 4A

Specifications

manufacturer
Manufacturer's name UR3KB100
Case In-Line
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 3
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

0,319 €

Stock: 1500
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
