TS 50P07 G

Taiwan Semiconductor flat rectifier series TS50P

  • bridge rectifiers
  • in an In-Line housing with a circular hole
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • pin spacing 7,5/10mm
  • glass passivated
  • operating temperature: -55 to +150°C
  • forward voltage: 50A (with heatsink)

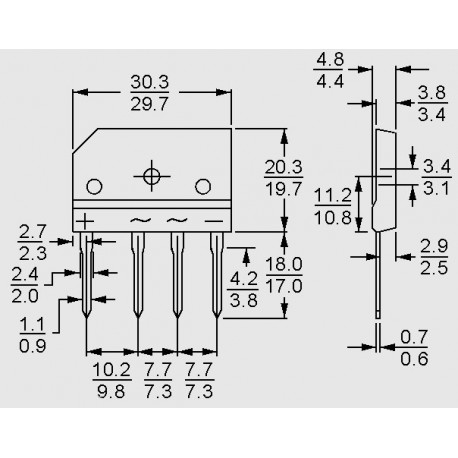

TS 50P07 G

TS 50P07 G

45909 TS 50P07 G TS50P07G TS50P07G Taiwan Semiconductor flat rectifier series TS50P. bridge rectifiers in an In-Line housing with a circular hole comply with UL94V-0 as well as MIL-STD-202, Meth. 208 pin spacing 7,5/10mm glass passivated operating temperature: -55 to +150°C forward voltage: 50A (with heatsink)

Specifications

manufacturer
Manufacturer's name TS50P07G
Case In-Line
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 50
Reverse current [µA] 10
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

1,80 €

Stock: 1540
Further delivery:
CW 15/2025

Minimum order quantity 15 units or
multiples of 15.
