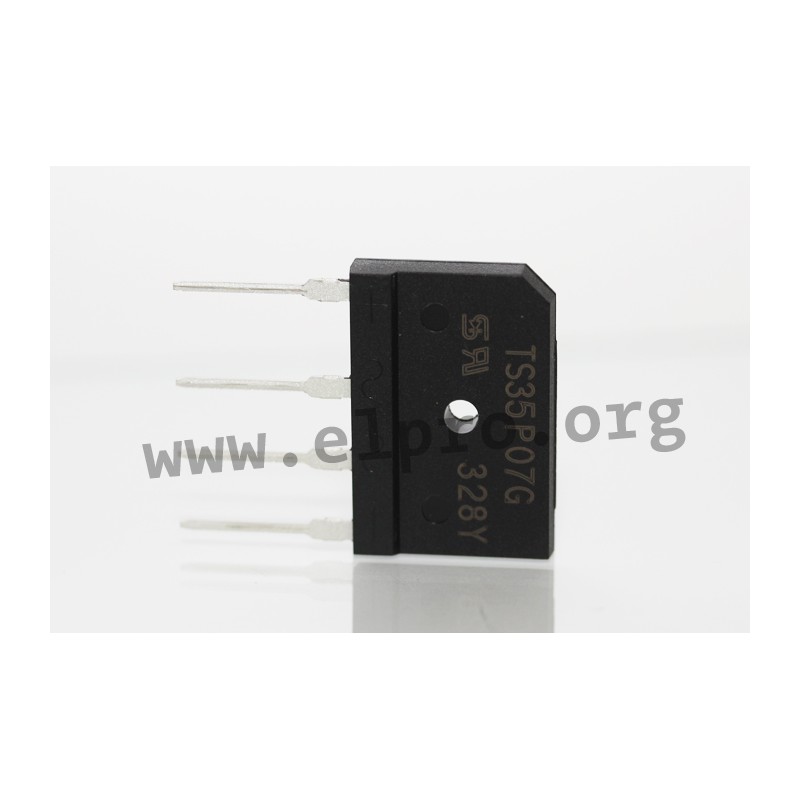

TS 35P07 G

Taiwan Semiconductor flat rectifier series TS35P

  • bridge rectifiers

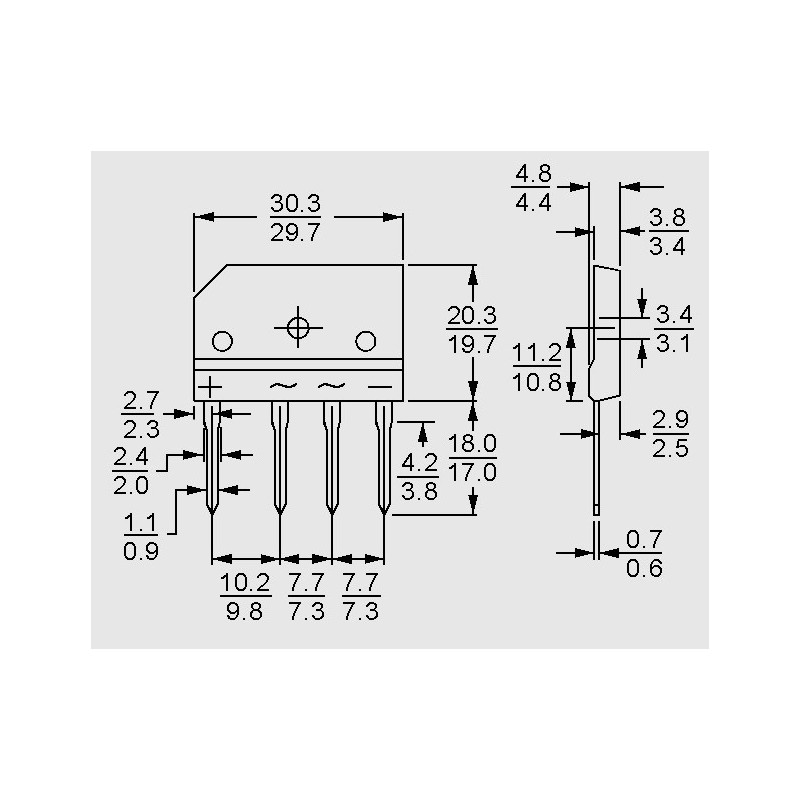

  • in an In-Line housing with a circular hole
  • pin spacing 7,5/10mm
  • glass passivated
  • comply with MIL-STD-202, Meth. 208 as well as UL94V-0
  • operating temperature: -55 to +150°C
  • forward current: 35A (with heatsink)

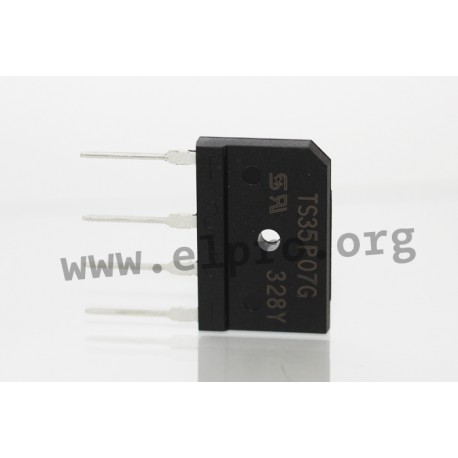

TS 35P07 G

TS 35P07 G

45903 TS 35P07 G TS35P07G TS35P07G Taiwan Semiconductor flat rectifier series TS35P. bridge rectifiers in an In-Line housing with a circular hole pin spacing 7,5/10mm glass passivated  comply with MIL-STD-202, Meth. 208 as well as UL94V-0 operating temperature: -55 to +150°C forward current: 35A (with heatsink)

Specifications

manufacturer
Manufacturer's name TS35P07G
Case In-Line
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 10
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

1,30 €

Stock: 1445
Further delivery:
CW 15/2025

Minimum order quantity 1 to 5 units or multiples of 15 plus 0 to 5 .
