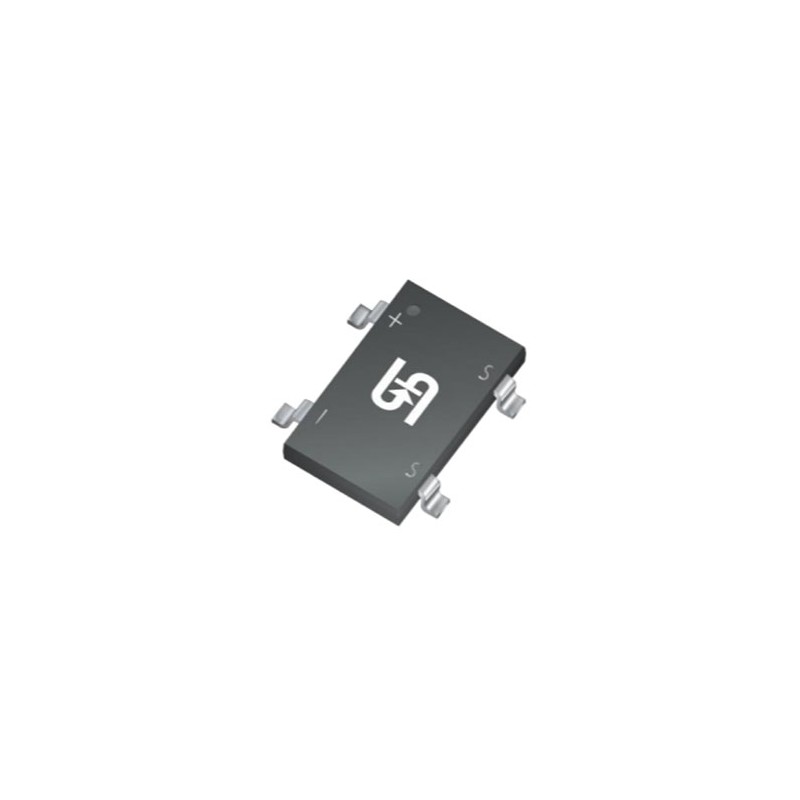

TBS606 M1G

Taiwan Semiconductor SMD rectifier series TBS

  • bridge rectifiers
  • in a thin SMD housing
  • comply with UL94V-0 as well as J-STD-002
  • glass passivated junction
  • operating temperature: -55 to +150°C

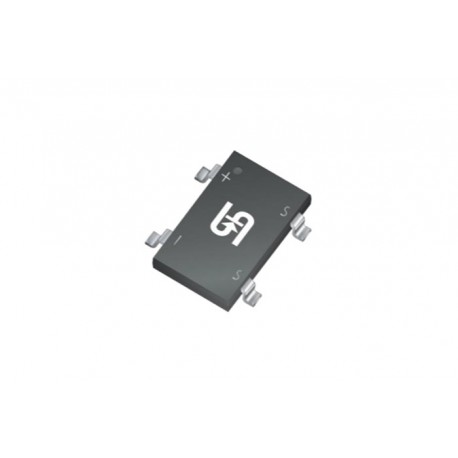

TBS606 M1G, Taiwan Semiconductor SMD rectifiers, up to 6A, TBS series

TBS606 M1G

240609 TBS606 M1G TBS606 TBS606 Taiwan Semiconductor SMD rectifier series TBS. bridge rectifiers in a thin SMD housing comply with UL94V-0 as well as J-STD-002 glass passivated junction operating temperature: -55 to +150°C

Specifications

manufacturer
Manufacturer's name TBS606
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1
(Max.) average forward (rectified) current [A] 6
Reverse current [µA] 2
(Max.) RMS voltage [V] 420
Forward current, max. [A] 150
Data Sheet

Unit price

0,248 €

Stock: 1300
Further delivery:
CW 17/2025

Minimum order quantity 100 units or
multiples of 100.
