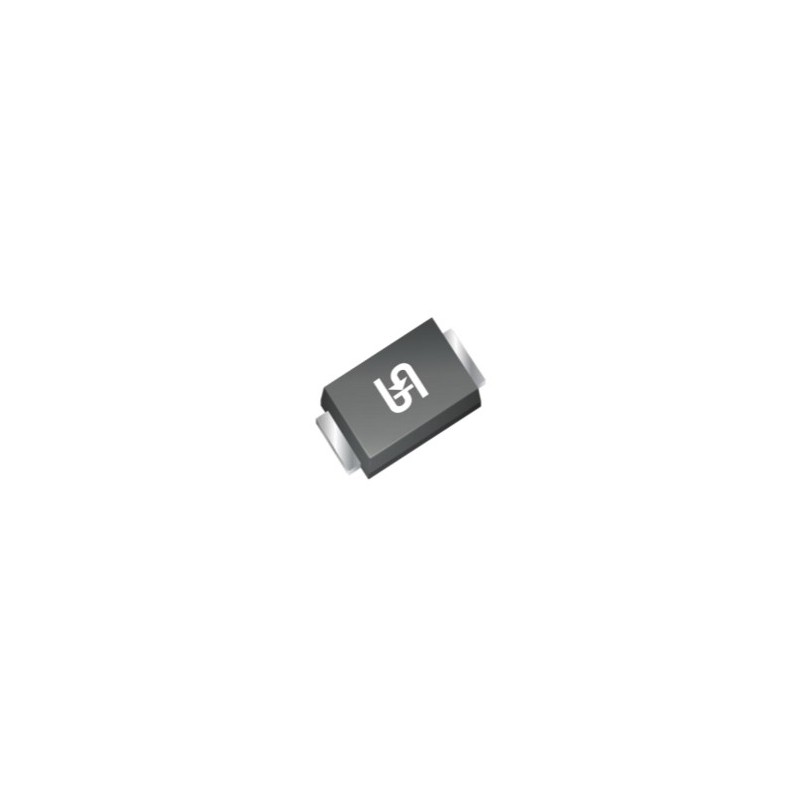

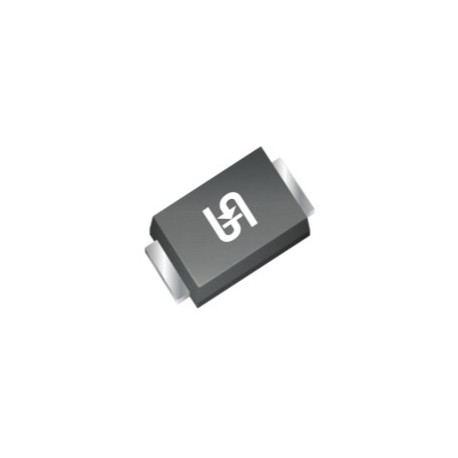

SMA4F30AH

Taiwan Semiconductor transient voltage suppression diode series SMA4F AH

  • TVS diodes in a thin SMA housing (SMD)
  • comply with AEC-Q101, UL94V-0 and IEC 61249-2-21
  • unidirectional
  • peak pulse power dissipation: 400W
  • forward voltage: 3,5V

SMA4F30AH

235721 SMA4F30AH SMA4F30AH Taiwan Semiconductor transient voltage suppression diode series SMA4F AH. TVS diodes in a thin SMA housing (SMD) comply with AEC-Q101, UL94V-0 and IEC 61249-2-21 unidirectional peak pulse power dissipation: 400W forward voltage: 3,5V

Specifications

manufacturer
Manufacturer's name SMA4F30AH
Breakdown voltage [V] 33,5
Reverse peak pulse current [A] 8,2
Reverse voltage [V] 30
Data Sheet

Unit price

0,106 €

Stock: 3300
Further delivery:
CW 17/2025

Minimum order quantity 50 units or
multiples of 50.
