> Semiconductors>Diodes>Rectifier diodes>Taiwan Semiconductor rectifier diodes, 2A, super fast, SF series>SF 24

Manufacturers

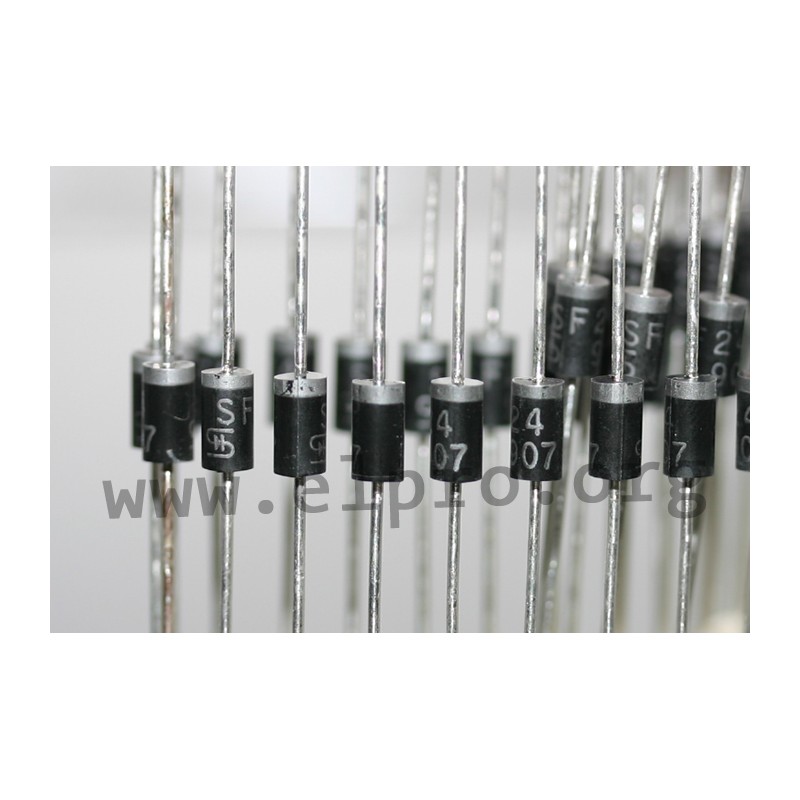

SF 24

super fast rectifier diodes 2A

* taped
* housings: DO15
* plastic conforms to UL94V-0
* axial leads solderable per MIL-STD-202, Meth. 208
* max. solderability: 250°C/10s
SF 24

SF 24

592 SF 24 SF24G-T SF24G-T super fast rectifier diodes 2A. * taped* housings: DO15* plastic conforms to UL94V-0* axial leads solderable per MIL-STD-202, Meth. 208* max. solderability: 250°C/10s

Specifications

manufacturer
Manufacturer's name SF24G-T
Case DO15
Peak forward surge current [A] 50
Max. reverse recovery time [ns] 35
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 0,95
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 2
Data Sheet

Unit price

0,066 €

Stock: 4257
Further delivery:
CW 25/2025

Minimum order quantity 1 to 57 units or multiples of 100 plus 0 to 57 .
