SBS 36

Taiwan Semiconductor SMD bridge rectifier series SBS

  • case: thin SMD
  • plastic conforms to UL94V-0
  • leads solderable per JESD22-B102
  • operating temperature range SBS 24, SBS 26 and SBS 36: -55 to +150°C

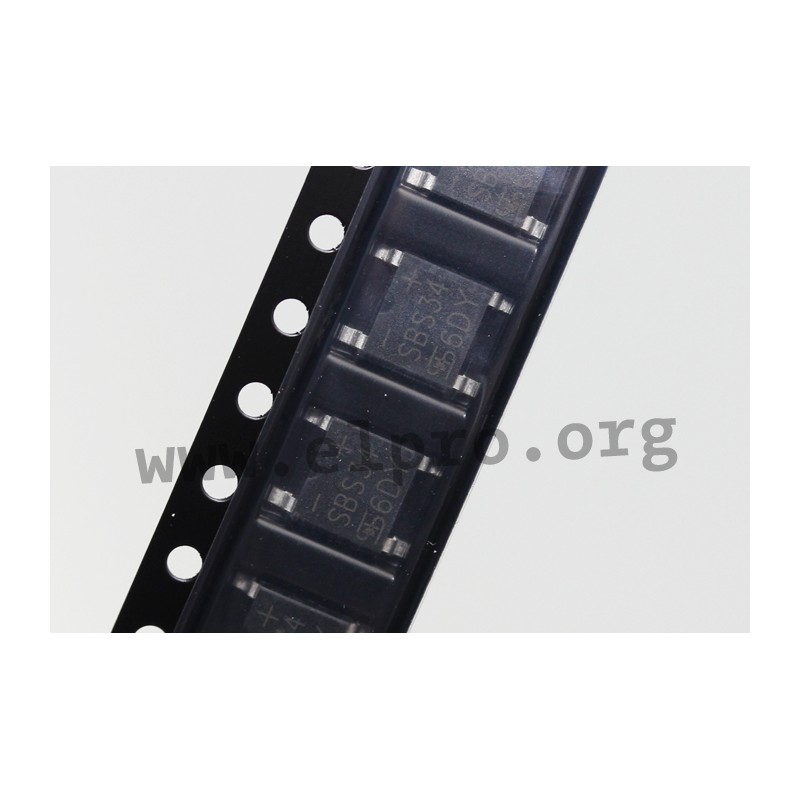

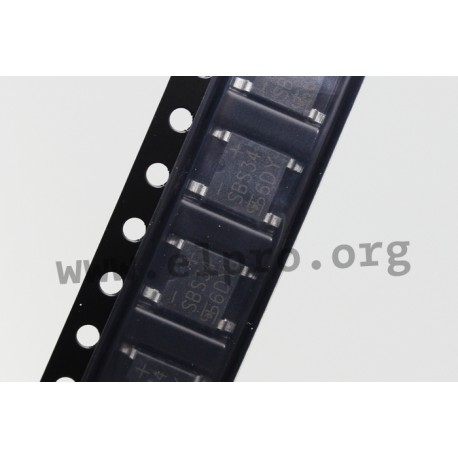

SBS36 RGG, Taiwan Semiconductor SMD rectifiers, 3A, Schottky, SBS series

SBS 36

113173 SBS 36 SBS36 SBS36 Taiwan Semiconductor SMD bridge rectifier series SBS. case: thin SMDplastic conforms to UL94V-0leads solderable per JESD22-B102operating temperature range SBS 24, SBS 26 and SBS 36: -55 to +150°C

Specifications

manufacturer
Manufacturer's name SBS36
Case Thin SMD
(Max.) peak recurrent reverse voltage [V] 60
Forward voltage [V] 0,7
(Max.) average forward (rectified) current [A] 3,0
Reverse current [µA] 500
(Max.) RMS voltage [V] 42
Data Sheet

Unit price

0,313 €

Stock: 6625
Further delivery:
CW 13/2025

Minimum order quantity 25 units or
multiples of 25.
