S2GAL

Taiwan Semiconductor rectifier diode series S2_AL and S2_FS

  • SMD Si rectifier diodes
  • in a Thin-SMA resp. SOD128 housing
  • solderable according to J-STD-002
  • comply with UL94V-0
  • operating temperature: -55 to +150°C
  • forward current: 2A

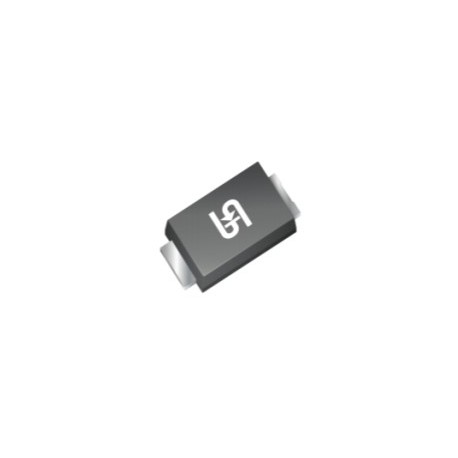

S2GAL M3G, Taiwan Semiconductor Si rectifier diodes, 2A, SMD, S2_AL and S2_FS series

S2GAL

237426 S2GAL S2GAL Taiwan Semiconductor rectifier diode series S2_AL and S2_FS. SMD Si rectifier diodes in a Thin-SMA resp. SOD128 housing solderable according to J-STD-002 comply with UL94V-0 operating temperature: -55 to +150°C forward current: 2A

Specifications

manufacturer
Manufacturer's name S2GAL
Case Thin-SMA
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 2
Reverse current [µA] 1
Data Sheet

Unit price

0,048 €

Stock: 7000
Further delivery:
CW 11/2025

Minimum order quantity 100 units or
multiples of 100.
