S1JFS

Taiwan Semiconductor rectifier diode series S1_AL and S1_FS

  • SMD Si rectifier diodes
  • in a Thin-SMA resp. SOD128 housing
  • comply with UL94V-0
  • solderable according to J-STD-002
  • operating temperature: -55 to +150°C
  • forward current: 1A

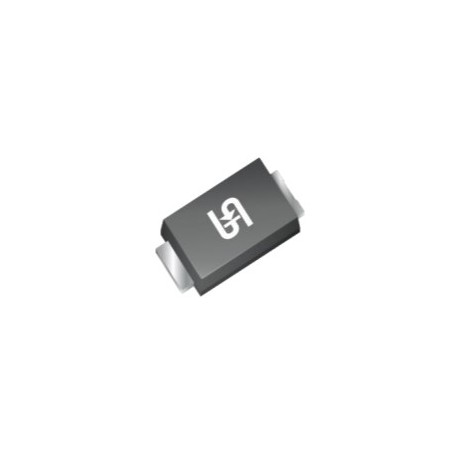

S1JFS MWG, Taiwan Semiconductor Si rectifier diodes, 1A, SMD, S1_AL and S1_FS series

S1JFS

237419 S1JFS S1JFS Taiwan Semiconductor rectifier diode series S1_AL and S1_FS. SMD Si rectifier diodes in a Thin-SMA resp. SOD128 housing comply with UL94V-0 solderable according to J-STD-002 operating temperature: -55 to +150°C forward current: 1A

Specifications

manufacturer
Manufacturer's name S1JFS
Case SOD128
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
Reverse current [µA] 1
(Max.) average forward (rectified) current [A] 1
Data Sheet

Unit price

0,048 €

Stock: 7000
Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
