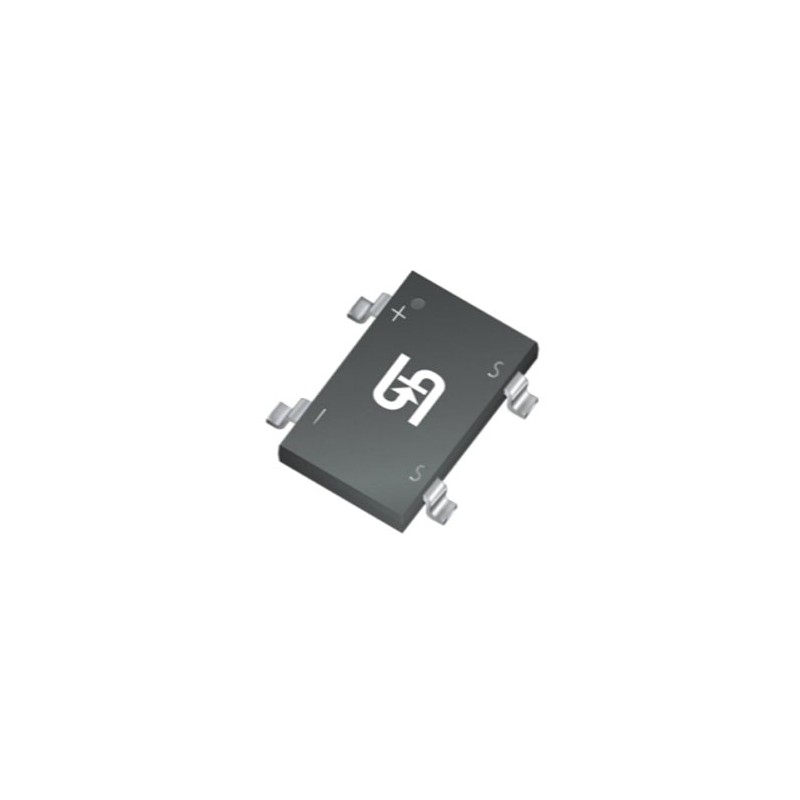

RTBS40M M2G

Taiwan Semiconductor SMD rectifier series RTBS_M

  • bridge rectifiers
  • in a thin SMD housing
  • solderable according to J-STD-002
  • comply with UL94V-0
  • operating temperature: -55 to +150°C
  • forward current: 4A

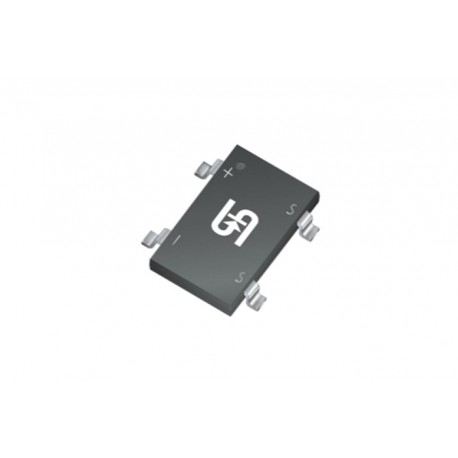

RTBS40M M2G, Taiwan Semiconductor SMD rectifiers, 4A, RTBSM series

RTBS40M M2G

240612 RTBS40M M2G RTBS40M RTBS40M Taiwan Semiconductor SMD rectifier series RTBS_M. bridge rectifiers in a thin SMD housing solderable according to J-STD-002 comply with UL94V-0 operating temperature: -55 to +150°C forward current: 4A

Specifications

manufacturer
Manufacturer's name RTBS40M
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,3
(Max.) average forward (rectified) current [A] 4
Reverse current [µA] 5
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

0,192 €

Stock: 1550
Further delivery:
CW 08/2025

Minimum order quantity 50 units or
multiples of 50.
