RS2KFS

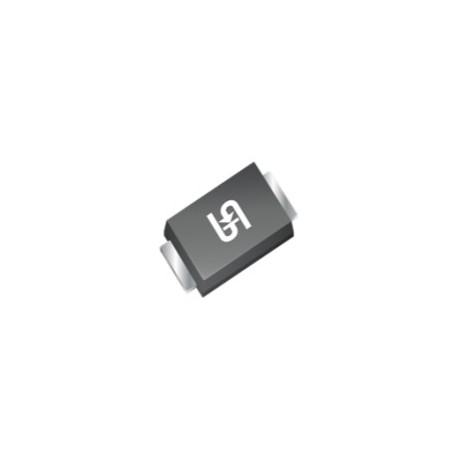

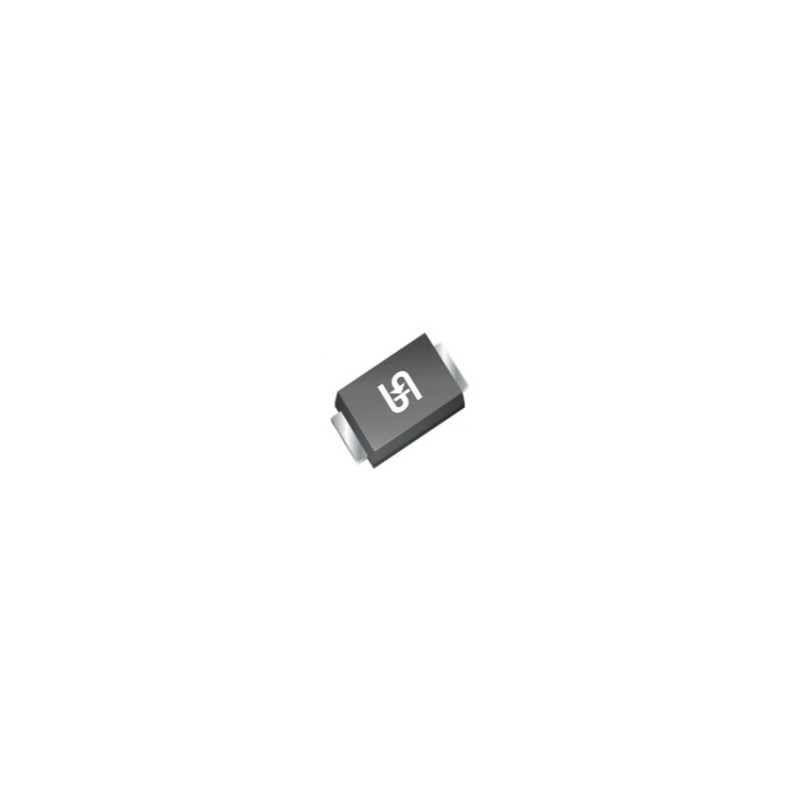

Taiwan Semiconductor rectifier diode series RS2

  • fast SMD rectifier diodes
  • in various housings
  • with a low power loss
  • solderable according to J-STD-002
  • operating temperature: -55 to +150°C
  • forward current: 2A

RS2KFS

237446 RS2KFS RS2KFS Taiwan Semiconductor rectifier diode series RS2. fast SMD rectifier diodes in various housings with a low power loss solderable according to J-STD-002 operating temperature: -55 to +150°C forward current: 2A

Specifications

manufacturer
Manufacturer's name RS2KFS
Case SOD128
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,05
Reverse current [µA] 1
(Max.) average forward (rectified) current [A] 2
Data Sheet

Unit price

0,06 €

Stock: 14000
Further delivery:
CW 09/2025

Minimum order quantity 100 units or
multiples of 100.
