RS2JAL

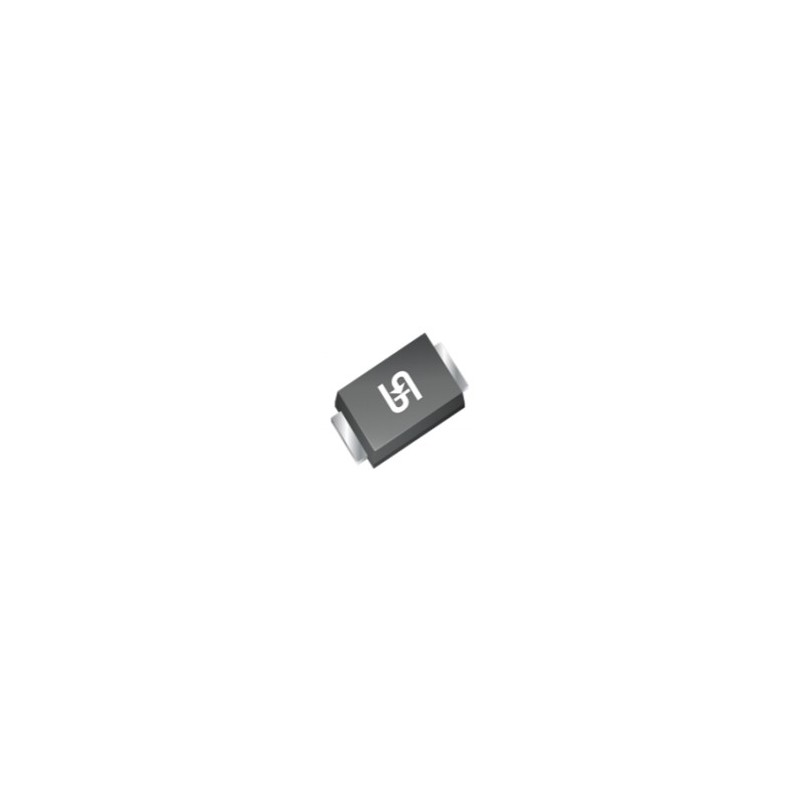

Taiwan Semiconductor rectifier diode series RS2

  • fast SMD rectifier diodes
  • in various housings
  • with a low power loss
  • solderable according to J-STD-002
  • operating temperature: -55 to +150°C
  • forward current: 2A

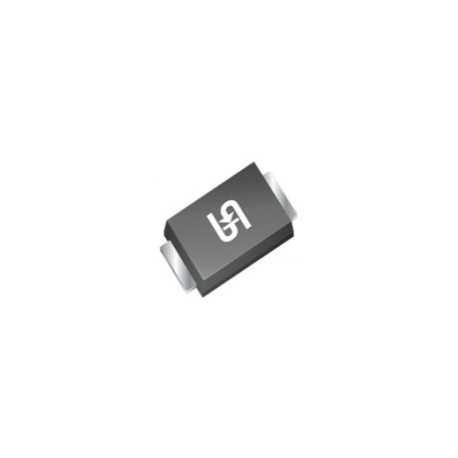

RS2JAL M3G, Taiwan Semiconductor rectifier diodes, 2A, SMD, fast, RS2_AL and RS2_FS series

RS2JAL

237443 RS2JAL RS2JAL Taiwan Semiconductor rectifier diode series RS2. fast SMD rectifier diodes in various housings with a low power loss solderable according to J-STD-002 operating temperature: -55 to +150°C forward current: 2A

Specifications

manufacturer
Manufacturer's name RS2JAL
Case Thin-SMA
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,02
Reverse current [µA] 1
(Max.) average forward (rectified) current [A] 2
Data Sheet

Unit price

0,058 €

Stock: 6400
Further delivery:
CW 09/2025

Minimum order quantity 100 units or
multiples of 100.
