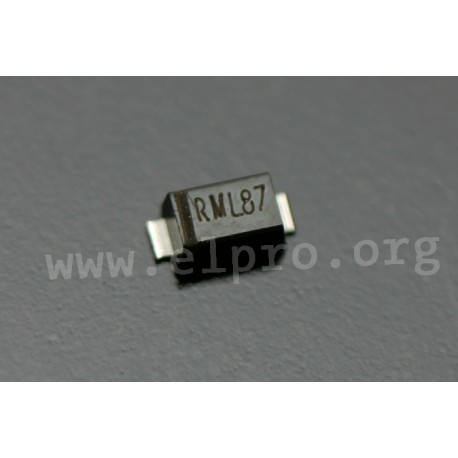

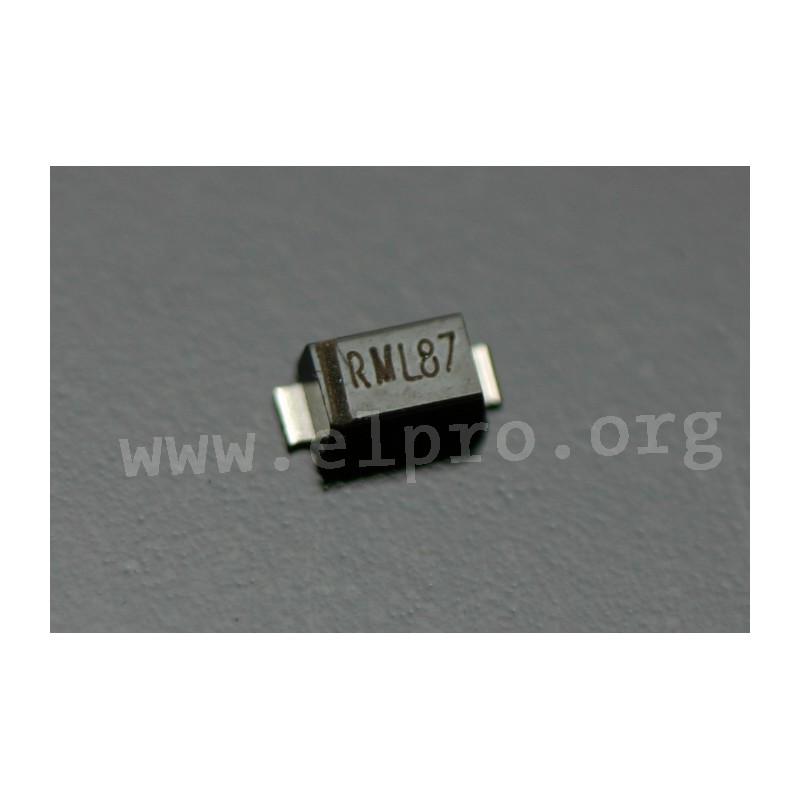

RS 1 ML

SMD fast rectifier diodes 0.8A

* glass-passivated
* case: DO219AB/Sub-SMA
* low-profile package
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s

RS 1 ML

RS 1 ML

25259 RS 1 ML RS1ML RS1ML SMD fast rectifier diodes 0.8A. * glass-passivated* case: DO219AB/Sub-SMA* low-profile package* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Specifications

manufacturer
Manufacturer's name RS1ML
Case DO219AB/Sub-SMA
Peak forward surge current [A] 30
Max. reverse recovery time [ns] 500
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,3
(Max.) average forward (rectified) current [A] 0,8
Reverse current [µA] 5
Data Sheet

Unit price

0,048 €

Stock: 16430
Next incoming goods:
CW 03/2025
20000 units

Further delivery:
CW 12/2025

Minimum order quantity 1 to 30 units or multiples of 200 plus 0 to 30 .
