P 4 KE CA 33 V

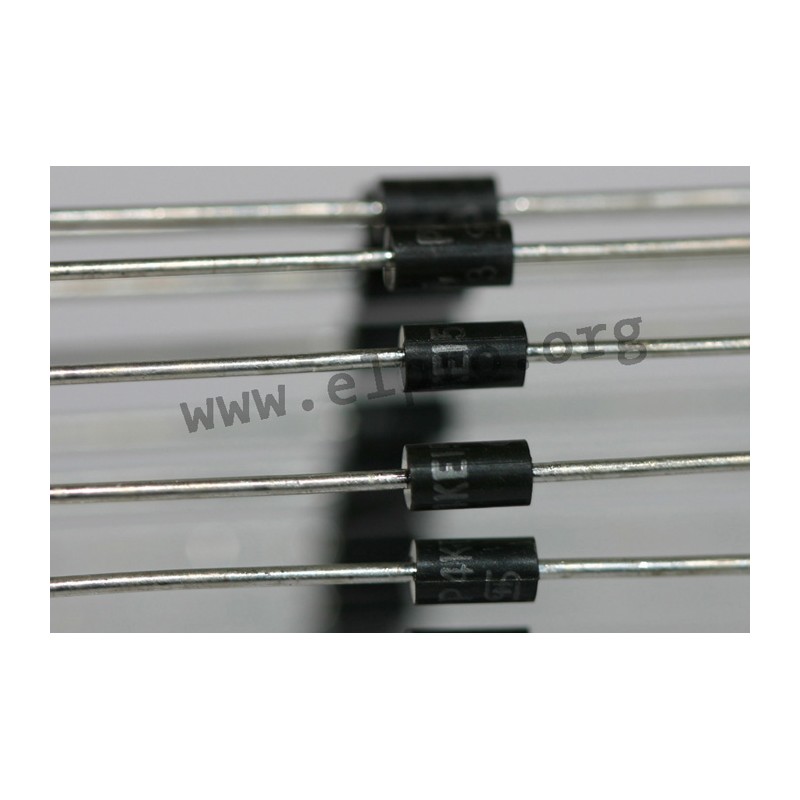

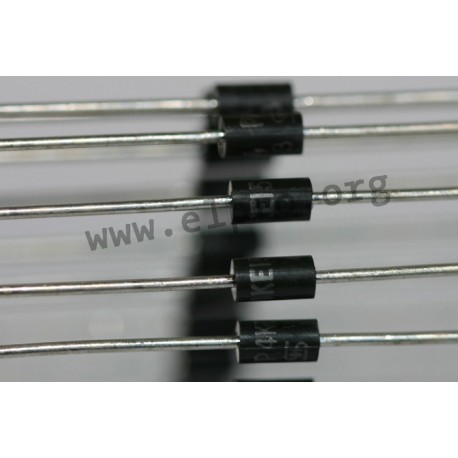

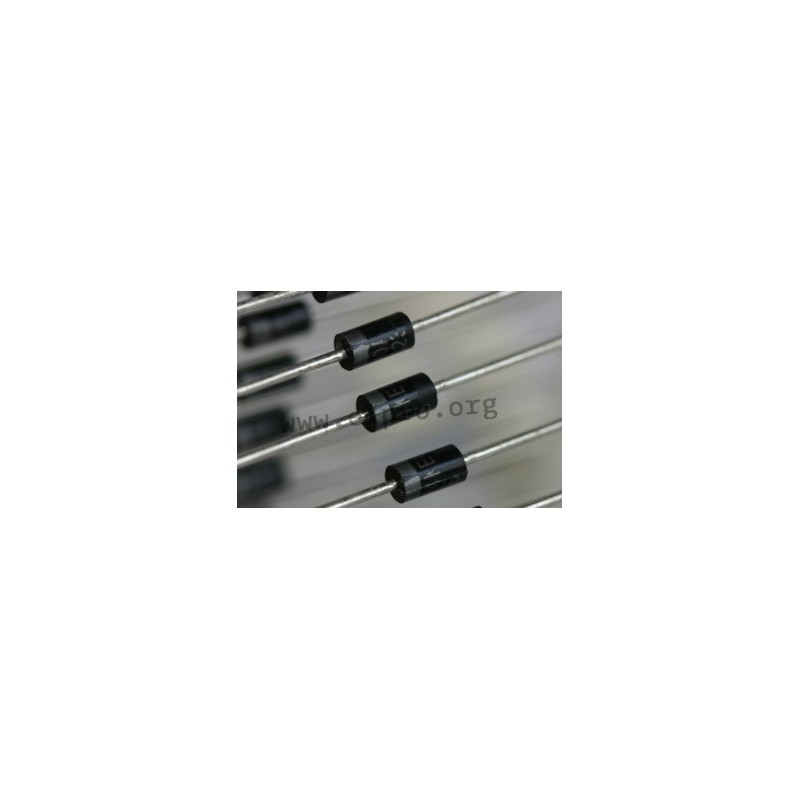

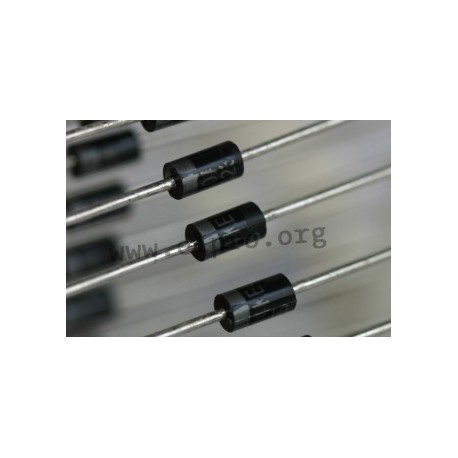

Taiwan Semiconductor transient voltage suppression diode series P4KE A

  • TVS diodes in a DO41 housing
  • with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s)
  • comply with UL94V-0
  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P 4 KE CA

P 4 KE CA 33 V

445 P 4 KE CA 33 V P4KE33CA P4KE33CA Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) comply with UL94V-0 peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE33CA

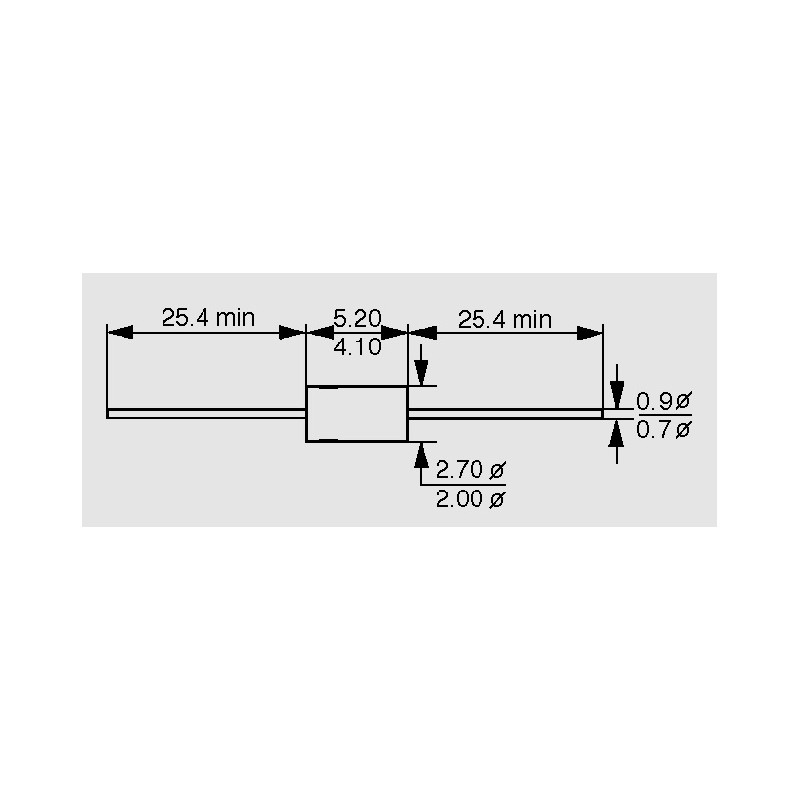

Case DO41
Reverse current [µA] 5
Stand-off voltage [V] 28,2
Breakdown voltage [V] 31,4
Test current [mA] 1
Max. clamping voltage [V] 45,7
Reverse peak pulse current [A] 9
Data Sheet

Unit price

0,091 €

Stock: 5290
Further delivery:
CW 09/2025

Minimum order quantity 1 to 40 units or multiples of 50 plus 0 to 40 .
