> Semiconductors>Diodes>Transient voltage suppressor diodes>Taiwan Semiconductor transient voltage suppression diodes, 400W, P4KE A series>P 4 KE CA 18 V

Manufacturers

P 4 KE CA 18 V

Taiwan Semiconductor transient voltage suppression diode series P4KE A

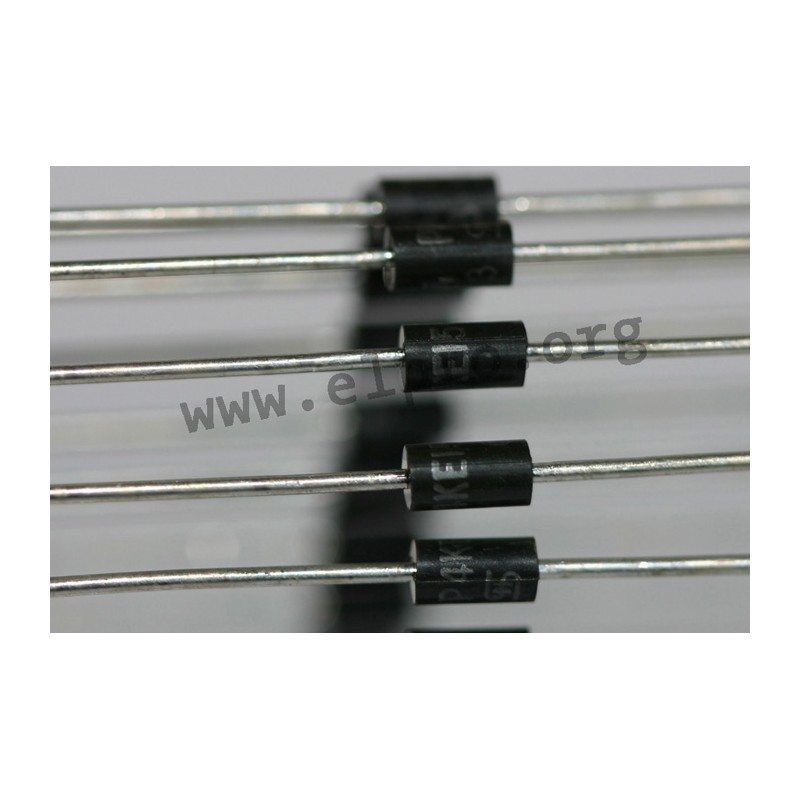

  • TVS diodes in a DO41 housing
  • with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s)
  • comply with UL94V-0
  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P 4 KE CA

P 4 KE CA 18 V

440 P 4 KE CA 18 V P4KE18CA P4KE18CA Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) comply with UL94V-0 peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE18CA

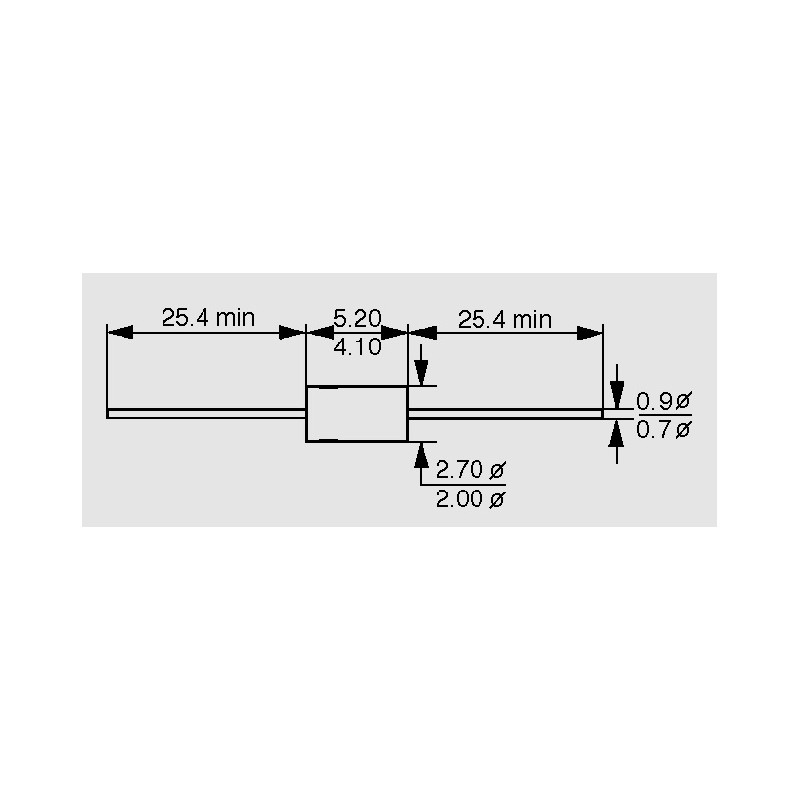

Case DO41
Reverse current [µA] 5
Stand-off voltage [V] 15,3
Test current [mA] 1
Breakdown voltage [V] 17,1
Max. clamping voltage [V] 25,5
Reverse peak pulse current [A] 16,5
Data Sheet

Unit price

0,091 €

Stock: 6750
Further delivery:
CW 16/2025

Minimum order quantity 50 units or
multiples of 50.
